【小白深度教程 1.32】手把手教你从多视角图像进行 3D 重建（SfM 算法）

1. SfM 三维重建算法简介

从多张照片中开发三维模型被称为多视图3D重建。

数码相机的进步以及图像分辨率和清晰度的提高，使得利用仅有的相机而非昂贵的特殊传感器来重建3D图像成为可能。

重建的目标是从一组照片中推导场景的几何结构，假设摄像机位置和内部参数是已知的或可以从图像集中猜测。

这是通过使用多个照片，在其中应用运动结构法（Structure from Motion，SfM）来解决像素级对应问题，部分地恢复3D信息来实现的。

该技术产生了先进的最新成果，但其主要关注的是技术的稳健性、精确性、完整性和可扩展性，这些问题通过增量式运动结构方法得到处理。

基于LIDAR的场景3D重建成本高，并且容易受到GPS和IMU的干扰。运动结构法仅使用低成本的相机图像来重建3D场景，同时获取单目相机相对于所提供场景的相机姿态。

2. SfM 方法和原理

3D图像重建的基本思想是：给定一组图像 {I₁, …, I_N}，每张图像是从不同视角拍摄的，我们的目标是使用这些图像来重建物体的三维表示。更具体地说，我们将找出相机相对于世界坐标系 F_W 的运动。相机的运动也称为相机投影矩阵 {P₁, … P_N}。利用这一组相机投影，我们将使用不同的算法恢复场景的3D结构。

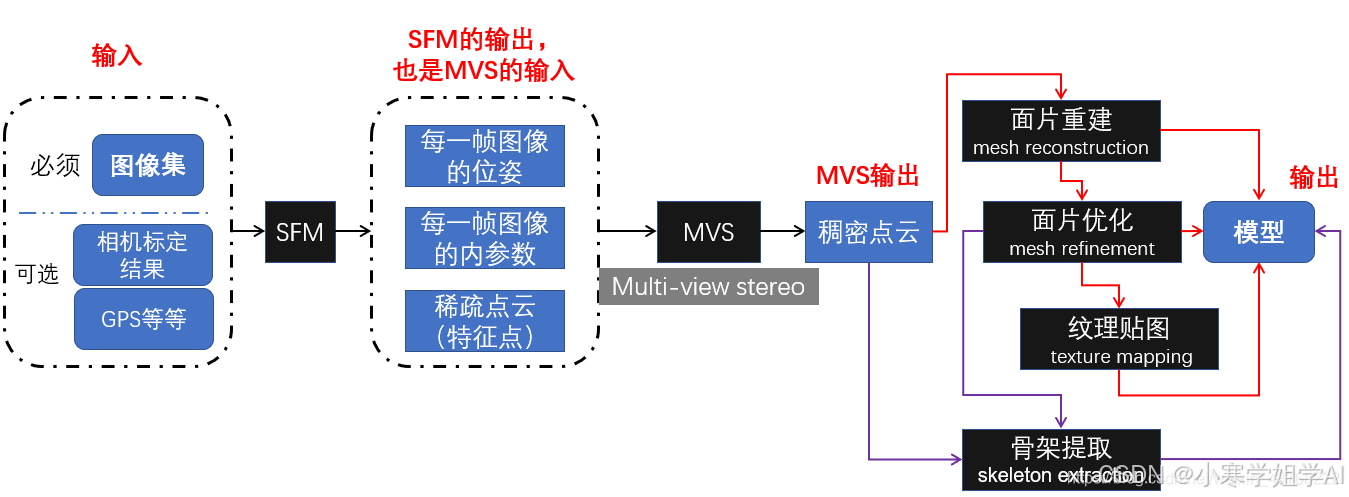

为此，我们将构建一个由两个主要部分组成的流水线：数据关联和运动结构（SfM）。数据关联用于检查两张图像是否相似。两张图像的相似性可以通过图像对应关系和稳健的两视几何进行检查。运动结构负责使用姿态估计和三角化技术进行初始重建，并使用束调整算法进行优化。然后在此基础上应用多视图立体（MVS）算法以获得密集的3D表示。

数据关联是3D重建流程的第一部分。给定一组非结构化图像，我们首先在这些图像中找到连接的组件。这有助于我们找到图像中的重叠视图。为了建立连接组件，我们使用SIFT [3]算法，该算法帮助我们从图像中提取关键点。然后，我们使用两视图几何算法执行图像或关键点的对应关系，这将一个图像中的特征映射到另一图像中的相似特征。数据关联的一个问题是，当输入图像集N较大时，搜索图像对变得无法处理，查询一个图像的复杂度为O(N.K^2)，其中K是每幅图像中的关键点数量。一个高效的基于树的图像检索方法将查询图像的复杂度降低为O(K.b.L)，其中K是查询图像中的特征，b是树的分支数，l是树的层数。

SfM 有三种不同的方法，即增量式SfM、全局SfM 和层次式SfM。我们使用增量式SfM生成稀疏3D重建。增量式SfM的基本思想如下。首先，我们从数据关联步骤生成的场景图中选择两个非全景视图。使用8点算法计算基础矩阵或本质矩阵。基础矩阵也可以被看作是相机投影，可分解为两个矩阵P和P’。P’表示相机的内部校准。然后我们应用线性三角化算法。

3. 安装依赖库

pip3 install opencv-contrib-python
pip3 install scipy
pip3 install tomlkit
pip3 install tqdm

4. 构建数据集

数据集位于 Datasets 目录下。

2. 创建一个 Sfm 对象 sfm_1，并将 <img_dir> 路径作为参数传入。 <img_dir> 中必须包含一个名为 K.txt 的文件，其中包含相机的内在参数。

3. 调用对象 sfm_1 时可以使用可选参数 enable_bundle_adjustment（运行时间较长，设置为 False 可快速运行）。在 sfm.py 的主函数中提供了一个示例。

4. 运行 sfm.py 文件。

python3 sfm.py

5. 使用 Meshlab 打开位于 res 目录中的 .ply 文件。

查看模型需要使用类似 Meshlab 的软件。

在 res 目录中也提供了一些运行结果。

5. 可视化结果

为测试我们的模型，我们使用了不同物体的多张图像。一个物体的数据集由从不同位置和角度拍摄的多张图像组成。除了图像外，还需要提供相机校准矩阵 K。这个矩阵包含了获取每张图像投影矩阵所需的信息。

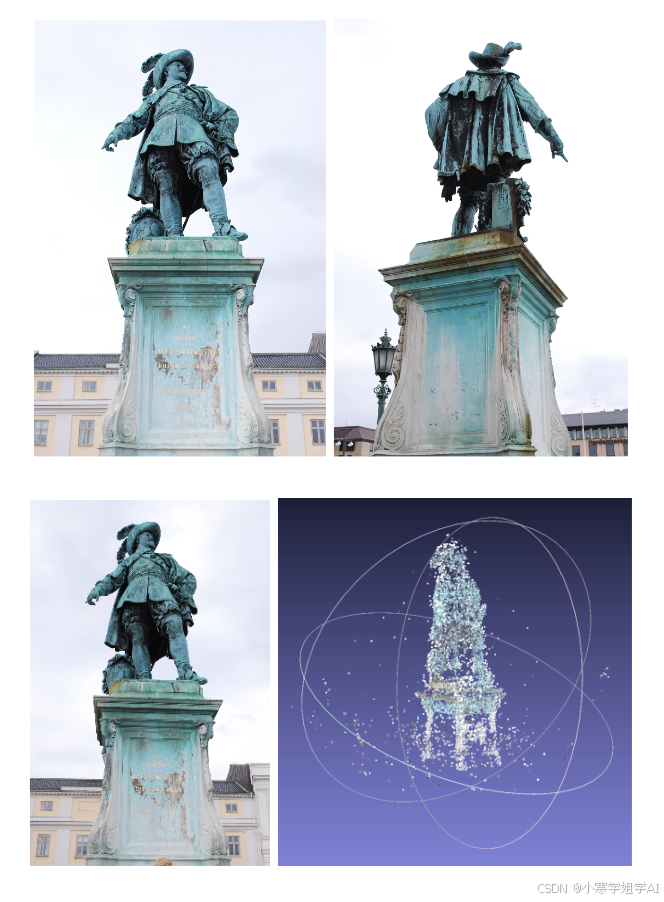

图 1: 显示了 Gustav II Adolf 雕像的样本输入图像及其右下方的对应 3D 重建（此重建未应用束调整）

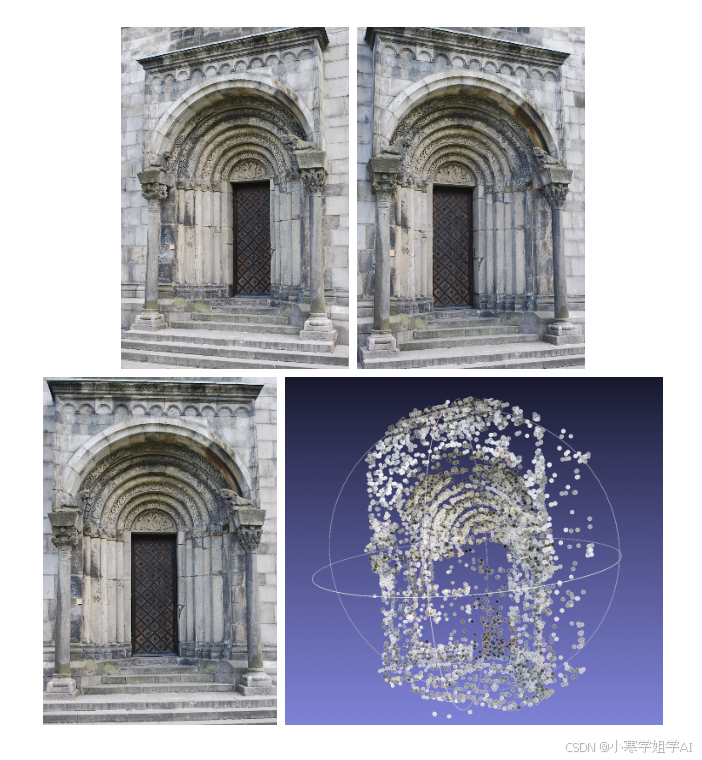

图 2: 显示了门的图像及其右下方的对应 3D 重建。

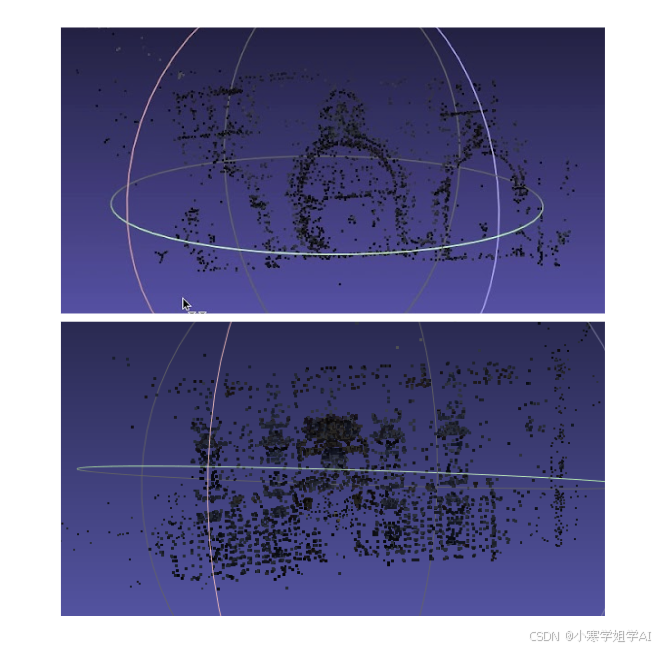

图 3: 显示了左侧使用束调整、右侧未使用束调整的图像重建。

在我们的实验中，束调整算法在处理大图像时需要很长时间。因此，我们只能在较小的图像数据集上使用它。即使不应用束调整，我们也能获得相对较好的 3D 表示。然而，应用束调整可以显著提高重建质量。

6. 完整代码

import cv2
import numpy as np
import os
from scipy.optimize import least_squares
from tomlkit import boolean
from tqdm import tqdm
import matplotlib.pyplot as plt

class Image_loader():
    def __init__(self, img_dir:str, downscale_factor:float):
        # loading the Camera intrinsic parameters K
        with open(img_dir + '\\K.txt') as f:
            self.K = np.array(list((map(lambda x:list(map(lambda x:float(x), x.strip().split(' '))),f.read().split('\n')))))
            self.image_list = []
        # Loading the set of images
        for image in sorted(os.listdir(img_dir)):
            if image[-4:].lower() == '.jpg' or image[-5:].lower() == '.png':
                self.image_list.append(img_dir + '\\' + image)

        self.path = os.getcwd()
        self.factor = downscale_factor
        self.downscale()


    def downscale(self) -> None:
        '''
        Downscales the Image intrinsic parameter acc to the downscale factor
        '''
        self.K[0, 0] /= self.factor
        self.K[1, 1] /= self.factor
        self.K[0, 2] /= self.factor
        self.K[1, 2] /= self.factor

    def downscale_image(self, image):
        for _ in range(1,int(self.factor / 2) + 1):
            image = cv2.pyrDown(image)
        return image

class Sfm():
    def __init__(self, img_dir:str, downscale_factor:float = 2.0) -> None:
        '''
            Initialise and Sfm object.
        '''
        self.img_obj = Image_loader(img_dir,downscale_factor)

    def triangulation(self, point_2d_1, point_2d_2, projection_matrix_1, projection_matrix_2) -> tuple:
        '''
        Triangulates 3d points from 2d vectors and projection matrices
        returns projection matrix of first camera, projection matrix of second camera, point cloud
        '''
        pt_cloud = cv2.triangulatePoints(point_2d_1, point_2d_2, projection_matrix_1.T, projection_matrix_2.T)
        return projection_matrix_1.T, projection_matrix_2.T, (pt_cloud / pt_cloud[3])

    def PnP(self, obj_point, image_point , K, dist_coeff, rot_vector, initial) ->  tuple:
        '''
        Finds an object pose from 3D-2D point correspondences using the RANSAC scheme.
        returns rotational matrix, translational matrix, image points, object points, rotational vector
        '''
        if initial == 1:
            obj_point = obj_point[:, 0 ,:]
            image_point = image_point.T
            rot_vector = rot_vector.T
        _, rot_vector_calc, tran_vector, inlier = cv2.solvePnPRansac(obj_point, image_point, K, dist_coeff, cv2.SOLVEPNP_ITERATIVE)
        # Converts a rotation matrix to a rotation vector or vice versa
        rot_matrix, _ = cv2.Rodrigues(rot_vector_calc)

        if inlier is not None:
            image_point = image_point[inlier[:, 0]]
            obj_point = obj_point[inlier[:, 0]]
            rot_vector = rot_vector[inlier[:, 0]]
        return rot_matrix, tran_vector, image_point, obj_point, rot_vector

    def reprojection_error(self, obj_points, image_points, transform_matrix, K, homogenity) ->tuple:
        '''
        Calculates the reprojection error ie the distance between the projected points and the actual points.
        returns total error, object points
        '''
        rot_matrix = transform_matrix[:3, :3]
        tran_vector = transform_matrix[:3, 3]
        rot_vector, _ = cv2.Rodrigues(rot_matrix)
        if homogenity == 1:
            obj_points = cv2.convertPointsFromHomogeneous(obj_points.T)
        image_points_calc, _ = cv2.projectPoints(obj_points, rot_vector, tran_vector, K, None)
        image_points_calc = np.float32(image_points_calc[:, 0, :])
        total_error = cv2.norm(image_points_calc, np.float32(image_points.T) if homogenity == 1 else np.float32(image_points), cv2.NORM_L2)
        return total_error / len(image_points_calc), obj_points

    def optimal_reprojection_error(self, obj_points) -> np.array:
        '''
        calculates of the reprojection error during bundle adjustment
        returns error
        '''
        transform_matrix = obj_points[0:12].reshape((3,4))
        K = obj_points[12:21].reshape((3,3))
        rest = int(len(obj_points[21:]) * 0.4)
        p = obj_points[21:21 + rest].reshape((2, int(rest/2))).T
        obj_points = obj_points[21 + rest:].reshape((int(len(obj_points[21 + rest:])/3), 3))
        rot_matrix = transform_matrix[:3, :3]
        tran_vector = transform_matrix[:3, 3]
        rot_vector, _ = cv2.Rodrigues(rot_matrix)
        image_points, _ = cv2.projectPoints(obj_points, rot_vector, tran_vector, K, None)
        image_points = image_points[:, 0, :]
        error = [ (p[idx] - image_points[idx])**2 for idx in range(len(p))]
        return np.array(error).ravel()/len(p)

    def bundle_adjustment(self, _3d_point, opt, transform_matrix_new, K, r_error) -> tuple:
        '''
        Bundle adjustment for the image and object points
        returns object points, image points, transformation matrix
        '''
        opt_variables = np.hstack((transform_matrix_new.ravel(), K.ravel()))
        opt_variables = np.hstack((opt_variables, opt.ravel()))
        opt_variables = np.hstack((opt_variables, _3d_point.ravel()))

        values_corrected = least_squares(self.optimal_reprojection_error, opt_variables, gtol = r_error).x
        K = values_corrected[12:21].reshape((3,3))
        rest = int(len(values_corrected[21:]) * 0.4)
        return values_corrected[21 + rest:].reshape((int(len(values_corrected[21 + rest:])/3), 3)), values_corrected[21:21 + rest].reshape((2, int(rest/2))).T, values_corrected[0:12].reshape((3,4))

    def to_ply(self, path, point_cloud, colors) -> None:
        '''
        Generates the .ply which can be used to open the point cloud
        '''
        out_points = point_cloud.reshape(-1, 3) * 200
        out_colors = colors.reshape(-1, 3)
        print(out_colors.shape, out_points.shape)
        verts = np.hstack([out_points, out_colors])


        mean = np.mean(verts[:, :3], axis=0)
        scaled_verts = verts[:, :3] - mean
        dist = np.sqrt(scaled_verts[:, 0] ** 2 + scaled_verts[:, 1] ** 2 + scaled_verts[:, 2] ** 2)
        indx = np.where(dist < np.mean(dist) + 300)
        verts = verts[indx]
        ply_header = '''ply
            format ascii 1.0
            element vertex %(vert_num)d
            property float x
            property float y
            property float z
            property uchar blue
            property uchar green
            property uchar red
            end_header
            '''
        with open(path + '\\res\\' + self.img_obj.image_list[0].split('\\')[-2] + '.ply', 'w') as f:
            f.write(ply_header % dict(vert_num=len(verts)))
            np.savetxt(f, verts, '%f %f %f %d %d %d')


    def common_points(self, image_points_1, image_points_2, image_points_3) -> tuple:
        '''
        Finds the common points between image 1 and 2 , image 2 and 3
        returns common points of image 1-2, common points of image 2-3, mask of common points 1-2 , mask for common points 2-3
        '''
        cm_points_1 = []
        cm_points_2 = []
        for i in range(image_points_1.shape[0]):
            a = np.where(image_points_2 == image_points_1[i, :])
            if a[0].size != 0:
                cm_points_1.append(i)
                cm_points_2.append(a[0][0])

        mask_array_1 = np.ma.array(image_points_2, mask=False)
        mask_array_1.mask[cm_points_2] = True
        mask_array_1 = mask_array_1.compressed()
        mask_array_1 = mask_array_1.reshape(int(mask_array_1.shape[0] / 2), 2)

        mask_array_2 = np.ma.array(image_points_3, mask=False)
        mask_array_2.mask[cm_points_2] = True
        mask_array_2 = mask_array_2.compressed()
        mask_array_2 = mask_array_2.reshape(int(mask_array_2.shape[0] / 2), 2)
        print(" Shape New Array", mask_array_1.shape, mask_array_2.shape)
        return np.array(cm_points_1), np.array(cm_points_2), mask_array_1, mask_array_2


    def find_features(self, image_0, image_1) -> tuple:
        '''
        Feature detection using the sift algorithm and KNN
        return keypoints(features) of image1 and image2
        '''

        sift = cv2.xfeatures2d.SIFT_create()
        key_points_0, desc_0 = sift.detectAndCompute(cv2.cvtColor(image_0, cv2.COLOR_BGR2GRAY), None)
        key_points_1, desc_1 = sift.detectAndCompute(cv2.cvtColor(image_1, cv2.COLOR_BGR2GRAY), None)

        bf = cv2.BFMatcher()
        matches = bf.knnMatch(desc_0, desc_1, k=2)
        feature = []
        for m, n in matches:
            if m.distance < 0.70 * n.distance:
                feature.append(m)

        return np.float32([key_points_0[m.queryIdx].pt for m in feature]), np.float32([key_points_1[m.trainIdx].pt for m in feature])

    def __call__(self, enable_bundle_adjustment:boolean=False):
        cv2.namedWindow('image', cv2.WINDOW_NORMAL)
        pose_array = self.img_obj.K.ravel()
        transform_matrix_0 = np.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])
        transform_matrix_1 = np.empty((3, 4))

        pose_0 = np.matmul(self.img_obj.K, transform_matrix_0)
        pose_1 = np.empty((3, 4))
        total_points = np.zeros((1, 3))
        total_colors = np.zeros((1, 3))

        image_0 = self.img_obj.downscale_image(cv2.imread(self.img_obj.image_list[0]))
        image_1 = self.img_obj.downscale_image(cv2.imread(self.img_obj.image_list[1]))

        feature_0, feature_1 = self.find_features(image_0, image_1)

        # Essential matrix
        essential_matrix, em_mask = cv2.findEssentialMat(feature_0, feature_1, self.img_obj.K, method=cv2.RANSAC, prob=0.999, threshold=0.4, mask=None)
        feature_0 = feature_0[em_mask.ravel() == 1]
        feature_1 = feature_1[em_mask.ravel() == 1]


        _, rot_matrix, tran_matrix, em_mask = cv2.recoverPose(essential_matrix, feature_0, feature_1, self.img_obj.K)
        feature_0 = feature_0[em_mask.ravel() > 0]
        feature_1 = feature_1[em_mask.ravel() > 0]
        transform_matrix_1[:3, :3] = np.matmul(rot_matrix, transform_matrix_0[:3, :3])
        transform_matrix_1[:3, 3] = transform_matrix_0[:3, 3] + np.matmul(transform_matrix_0[:3, :3], tran_matrix.ravel())

        pose_1 = np.matmul(self.img_obj.K, transform_matrix_1)

        feature_0, feature_1, points_3d = self.triangulation(pose_0, pose_1, feature_0, feature_1)
        error, points_3d = self.reprojection_error(points_3d, feature_1, transform_matrix_1, self.img_obj.K, homogenity = 1)
        #ideally error < 1
        print("REPROJECTION ERROR: ", error)
        _, _, feature_1, points_3d, _ = self.PnP(points_3d, feature_1, self.img_obj.K, np.zeros((5, 1), dtype=np.float32), feature_0, initial=1)

        total_images = len(self.img_obj.image_list) - 2
        pose_array = np.hstack((np.hstack((pose_array, pose_0.ravel())), pose_1.ravel()))

        threshold = 0.5
        for i in tqdm(range(total_images)):
            image_2 = self.img_obj.downscale_image(cv2.imread(self.img_obj.image_list[i + 2]))
            features_cur, features_2 = self.find_features(image_1, image_2)

            if i != 0:
                feature_0, feature_1, points_3d = self.triangulation(pose_0, pose_1, feature_0, feature_1)
                feature_1 = feature_1.T
                points_3d = cv2.convertPointsFromHomogeneous(points_3d.T)
                points_3d = points_3d[:, 0, :]


            cm_points_0, cm_points_1, cm_mask_0, cm_mask_1 = self.common_points(feature_1, features_cur, features_2)
            cm_points_2 = features_2[cm_points_1]
            cm_points_cur = features_cur[cm_points_1]

            rot_matrix, tran_matrix, cm_points_2, points_3d, cm_points_cur = self.PnP(points_3d[cm_points_0], cm_points_2, self.img_obj.K, np.zeros((5, 1), dtype=np.float32), cm_points_cur, initial = 0)
            transform_matrix_1 = np.hstack((rot_matrix, tran_matrix))
            pose_2 = np.matmul(self.img_obj.K, transform_matrix_1)

            error, points_3d = self.reprojection_error(points_3d, cm_points_2, transform_matrix_1, self.img_obj.K, homogenity = 0)


            cm_mask_0, cm_mask_1, points_3d = self.triangulation(pose_1, pose_2, cm_mask_0, cm_mask_1)
            error, points_3d = self.reprojection_error(points_3d, cm_mask_1, transform_matrix_1, self.img_obj.K, homogenity = 1)
            print("Reprojection Error: ", error)
            pose_array = np.hstack((pose_array, pose_2.ravel()))
            # takes a long time to run
            if enable_bundle_adjustment:
                points_3d, cm_mask_1, transform_matrix_1 = self.bundle_adjustment(points_3d, cm_mask_1, transform_matrix_1, self.img_obj.K, threshold)
                pose_2 = np.matmul(self.img_obj.K, transform_matrix_1)
                error, points_3d = self.reprojection_error(points_3d, cm_mask_1, transform_matrix_1, self.img_obj.K, homogenity = 0)
                print("Bundle Adjusted error: ",error)
                total_points = np.vstack((total_points, points_3d))
                points_left = np.array(cm_mask_1, dtype=np.int32)
                color_vector = np.array([image_2[l[1], l[0]] for l in points_left])
                total_colors = np.vstack((total_colors, color_vector))
            else:
                total_points = np.vstack((total_points, points_3d[:, 0, :]))
                points_left = np.array(cm_mask_1, dtype=np.int32)
                color_vector = np.array([image_2[l[1], l[0]] for l in points_left.T])
                total_colors = np.vstack((total_colors, color_vector))



            transform_matrix_0 = np.copy(transform_matrix_1)
            pose_0 = np.copy(pose_1)
            plt.scatter(i, error)
            plt.pause(0.05)

            image_0 = np.copy(image_1)
            image_1 = np.copy(image_2)
            feature_0 = np.copy(features_cur)
            feature_1 = np.copy(features_2)
            pose_1 = np.copy(pose_2)
            cv2.imshow(self.img_obj.image_list[0].split('\\')[-2], image_2)
            if cv2.waitKey(1) & 0xff == ord('q'):
                break
        cv2.destroyAllWindows()

        print("Printing to .ply file")
        print(total_points.shape, total_colors.shape)
        self.to_ply(self.img_obj.path, total_points, total_colors)
        print("Completed Exiting ...")
        np.savetxt(self.img_obj.path + '\\res\\' + self.img_obj.image_list[0].split('\\')[-2]+'_pose_array.csv', pose_array, delimiter = '\n')

if __name__ == '__main__':
    sfm = Sfm("Datasets\\Herz-Jesus-P8")
    sfm()
