【小白深度教程 1.29】手把手教你使用 Open3D（12）点云聚类、分割和 3D 目标检测实战，使用 KITTI 数据集（含 Python 代码）
1. 摘要
本项目深入研究了如何使用 KITTI 数据集进行实际的点云分析。
- 我们首先使用 Open3D 进行可视化，并使用体素网格进行下采样。
- 接着，我们应用 RANSAC 算法来分割障碍物和道路表面，从而增强对场景的理解。 利用 DBSCAN 聚类算法，我们对相似障碍物进行了聚类分析，以获得更准确的空间洞察。
- 为实现跟踪功能，我们为每个障碍物创建了 3D 边界框。
本项目的目标是展示如何应用机器学习算法处理 3D 空间中的点云数据。
与立体相机相比（我们之前的章节讲过），单目相机在准确感知复杂的 3D 环境时面临困难。 此外，如何分类环境中的所有潜在障碍物——从树木和电线到路灯杆及其他车辆——也是一大难题。 障碍物检测所依赖的有限数据集无法涵盖所有可能存在的物体。
2. 点云处理

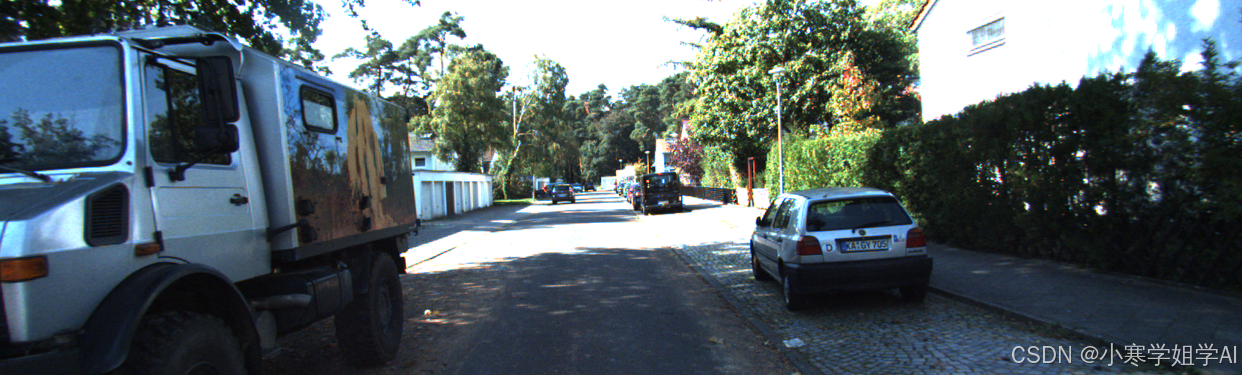

在我们的分析中，我们将使用 KITTI 数据集，该数据集包含同步的立体图像和 LiDAR 数据。 该数据集通过立体相机系统定时捕获两组图像。 此外，他们的 Velodyne LiDAR 生成了相应的点云。 因此，我们可以使用图像在 2D 中可视化场景，并使用点云在 3D 中可视化场景，如下所示：
2.1 可视化
在本项目中，有多种用于点云处理的库和软件。 其中，Open3D 和 PCL 是两个常用的库。 本项目将专门使用 Open3D。
选择 Open3D 的原因在于其易于使用，并且有大量相关文献可以参考。
我们的点云数据已经转换为 .ply 格式，因此我们可以使用 Open3D 的
函数，如下所示：
read_point_cloud
point_cloud = open3d.io.read_point_cloud(point_cloud_path)

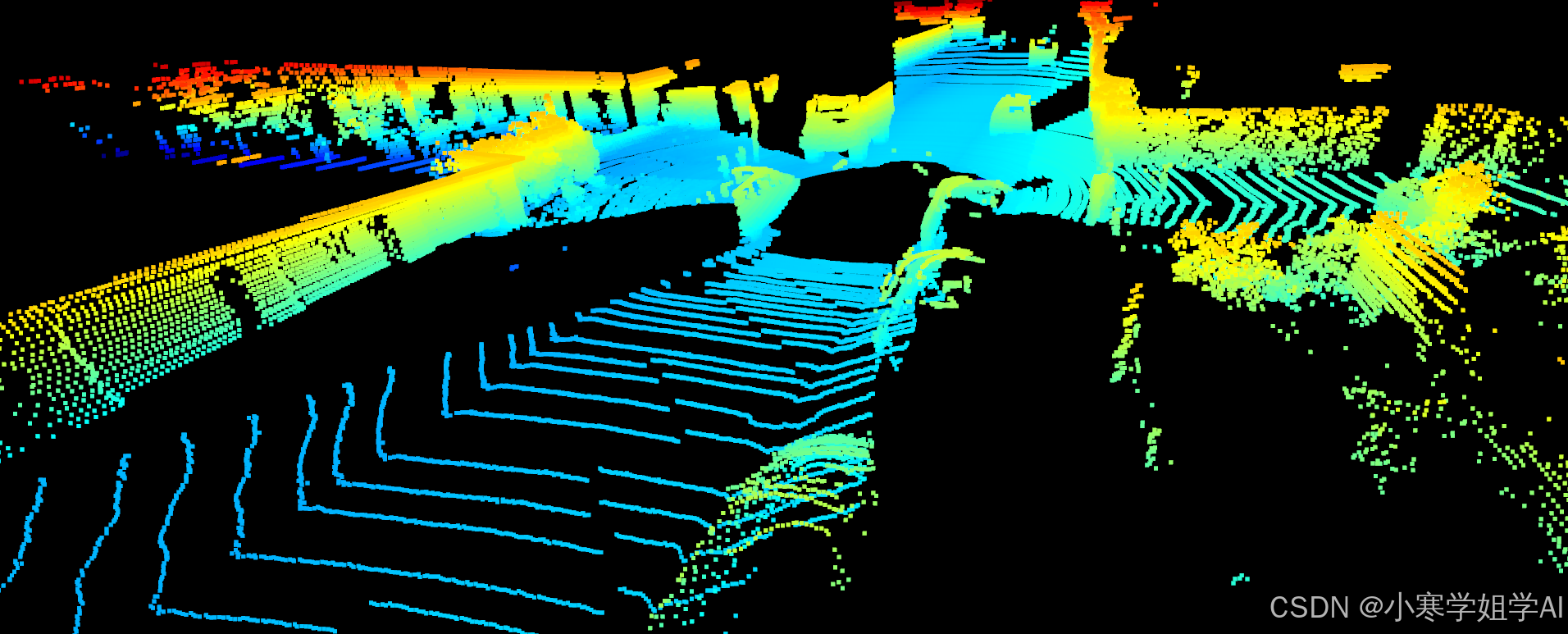

在加载文件后，有许多方法可以用Open3D可视化点云：
方法一
o3d.visualization.draw_geometries([point_cloud])
方法二
vis = open3d.visualization.Visualizer()
vis.create_window()
vis.add_geometry(point_cloud)
vis.get_render_option().background_color = np.asarray([0, 0, 0])
vis.run()
vis.destroy_window()
方法三
visualize_reflectance_distance(point_cloud, mode='distance', save=False, show=True) #mode = reflectance or distance

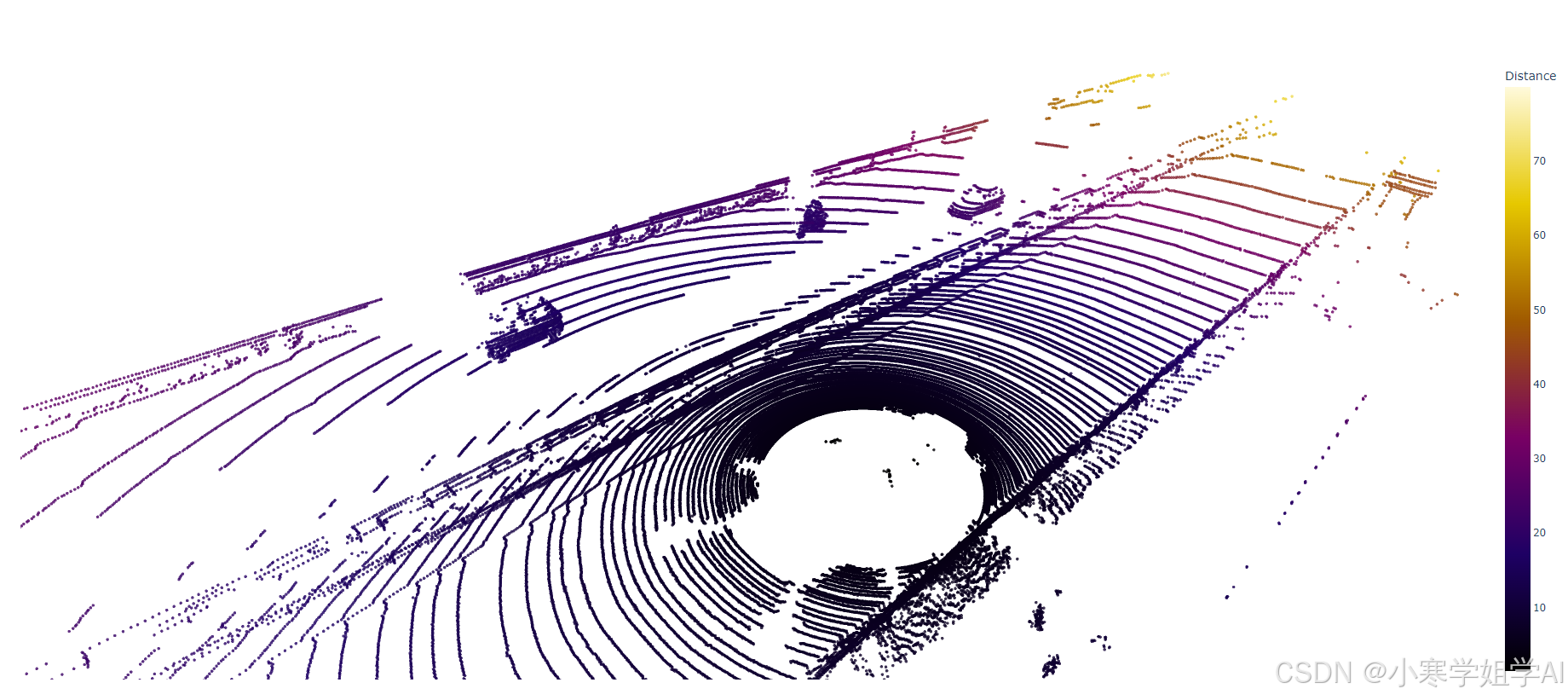

我们还可以用颜色编码的距离来可视化点云：

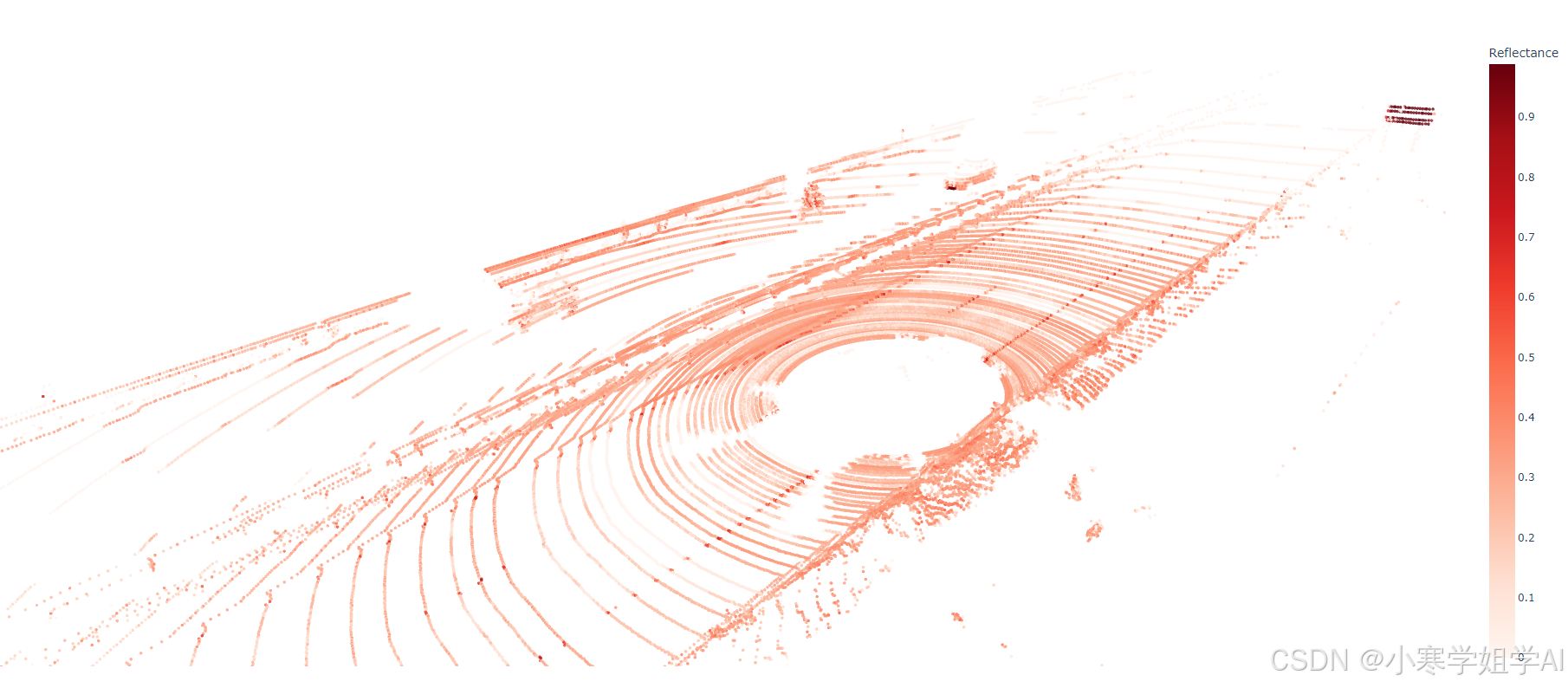

注意，远处的点显示为黄色，如右边的颜色条所示。现在，如果我们想用颜色编码的反射率来可视化点云：
2.2 阈值过滤车道线检测
让我们现在来构建基于点云反射率数据的车道线检测。
从上图可以看出，当我们仔细观察时，可以看到车道线呈现较暗的红色阴影。接下来，我们将过滤具有较高反射率的点云数据。步骤如下：
- 获取反射率值
- 创建一个掩码，筛选出反射率高于阈值的点
- 使用掩码过滤点和反射率值
- 使用过滤后的点和颜色创建新的点云
filtered_point_cloud = reflectivity_threshold(point_cloud, threshold=0.5)

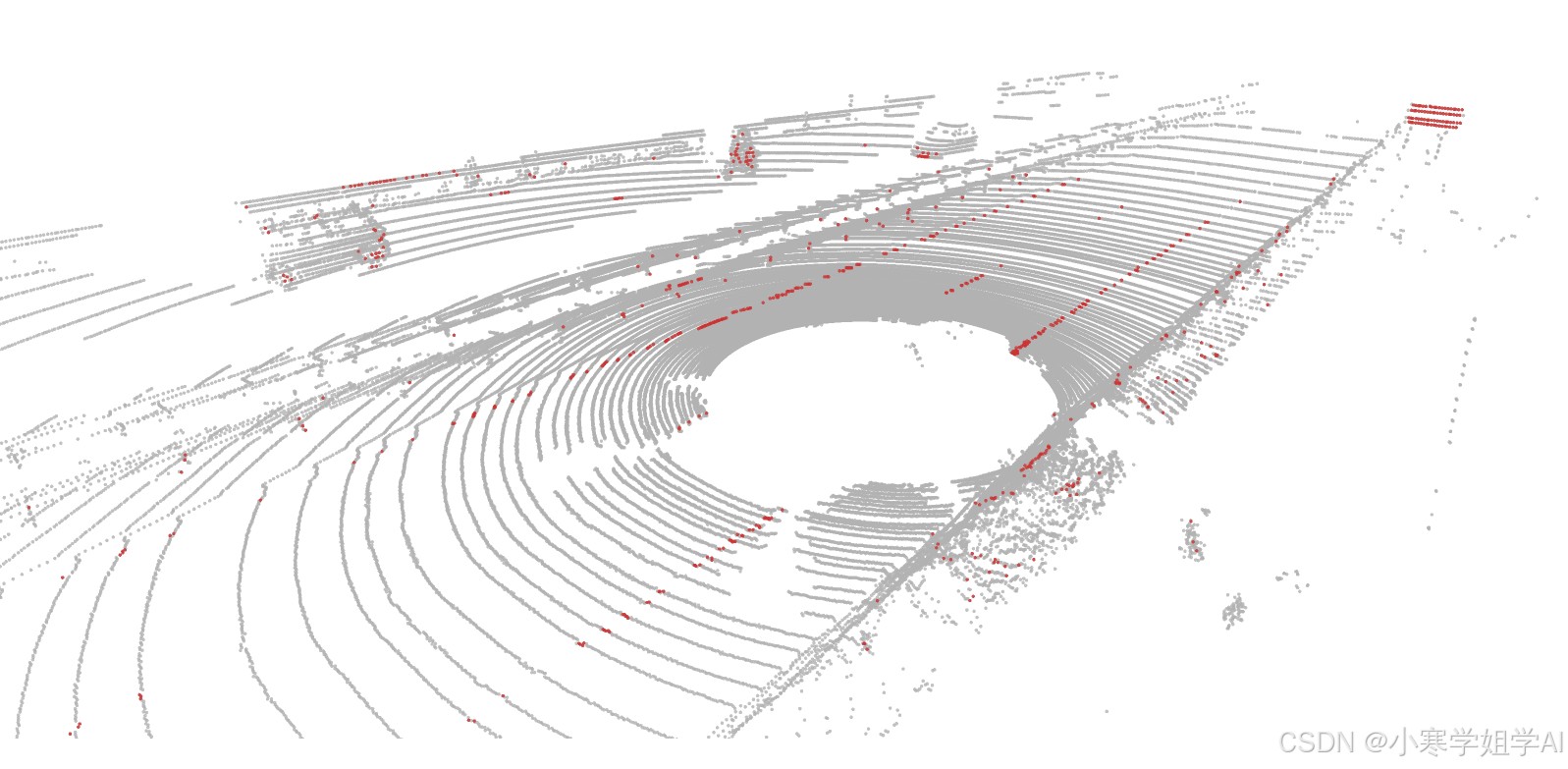

使用阈值技术，我们过滤掉了所有反射率低于 0.5 的点云。
可以观察到，车道线变得更加明显，但同时也包括车牌和两侧的护栏。
我们只对车道线感兴趣，因此需要将其他部分过滤掉。

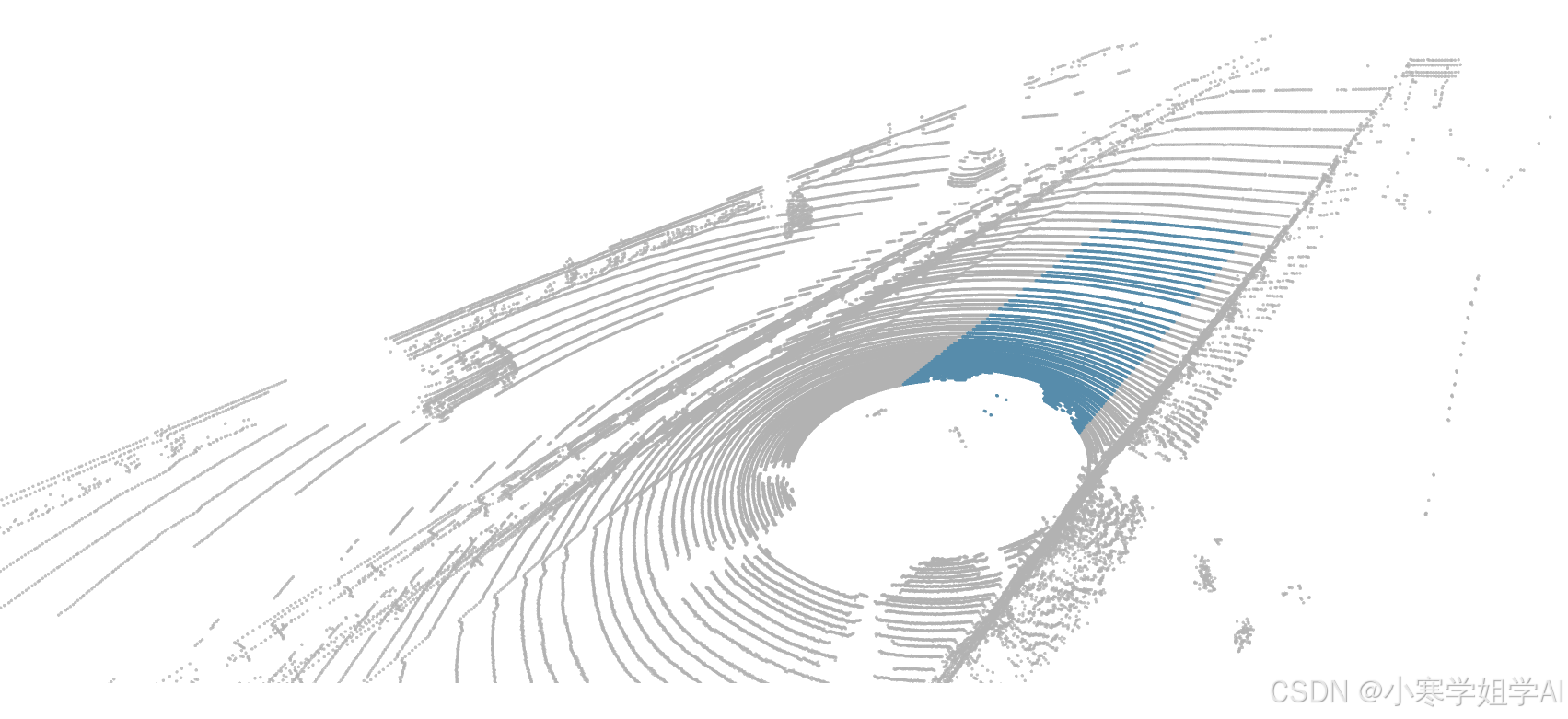

2.3 感兴趣区域（ROI）
现在我们有了过滤后的反射率值，我们需要手动创建一个包含车道线的ROI。
我们需要为ROI设置最小值和最大值：
roi_point_cloud = roi_filter(point_cloud, roi_min=(0, -3, -2), roi_max=(20, 3, 0))
当我们对所选择的 ROI 感到满意时，我们需要使用 reflectivity_threshold 函数和 roi_filter 函数创建一个管道。
# Lane Line Detection
def lane_line_detection(point_cloud):
# Make a copy
point_cloud_copy = copy.deepcopy(point_cloud)
# Thresholding
filtered_point_cloud = reflectivity_threshold(point_cloud_copy, threshold=0.45)
# Region of Interest
roi_point_cloud = roi_filter(filtered_point_cloud, roi_min=(0, -3, -2), roi_max=(20, 3, 0))
return roi_point_cloud

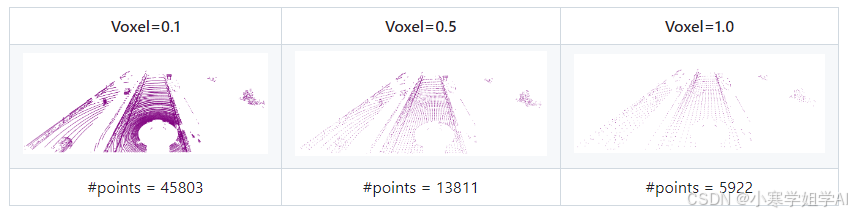

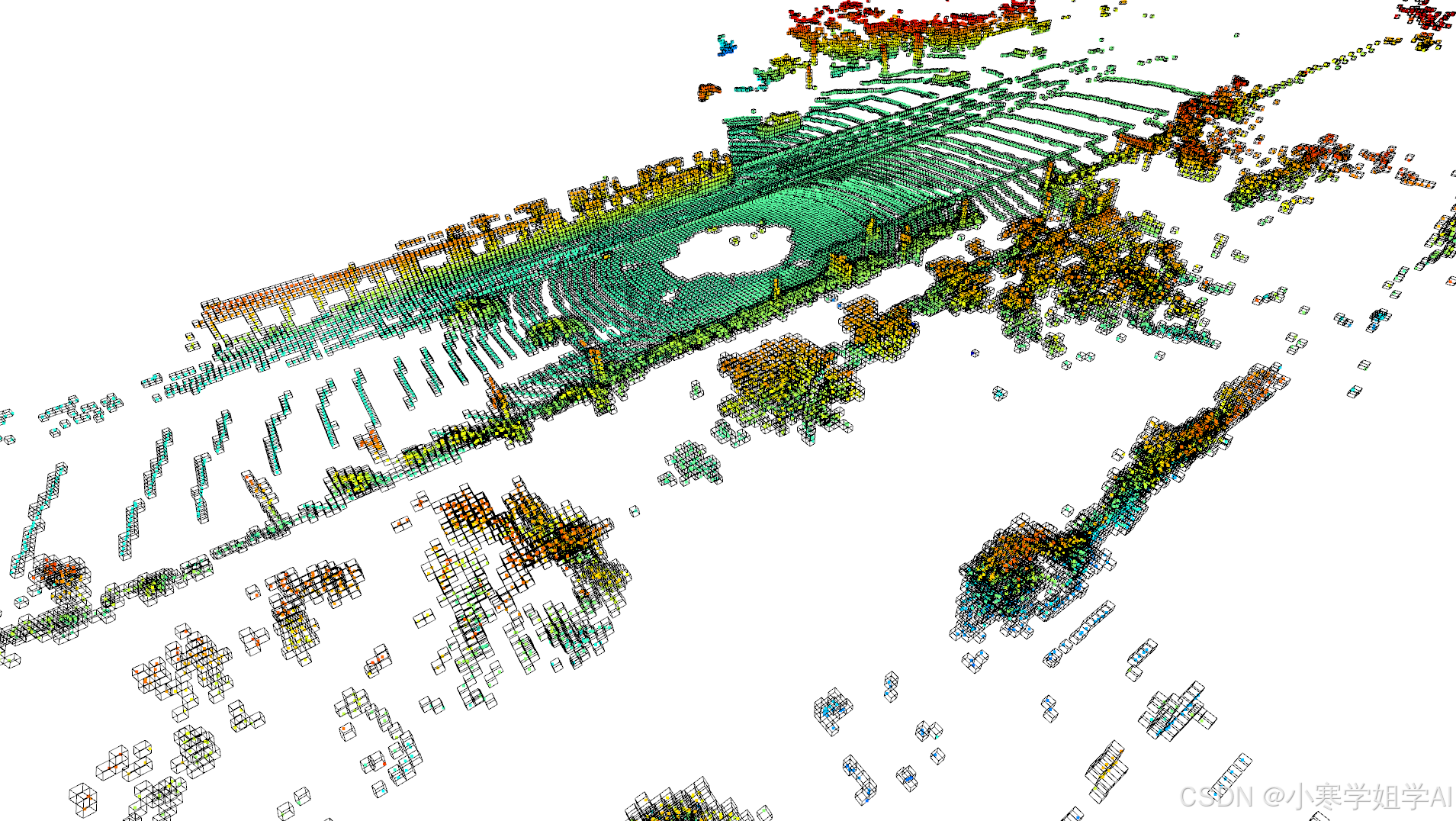

3. 使用体素网格进行下采样
在处理点云时，并不需要所有的点。实际上，下采样点云可以去除潜在的噪声，并提高处理和可视化的速度。体素网格下采样的步骤如下：
- 定义体素大小 ：较小的体素尺寸会生成更详细的点云，而较大的体素尺寸会导致更激进的下采样。
- 划分空间 ：通过创建 3D 网格，将点云的 3D 空间划分为多个体素。根据点的 3D 坐标，每个点都被分配到对应的体素中。
- 子采样 ：对于每个体素，保留一个点。这可以通过选择体素内点的质心或使用其他采样方法来实现。
- 移除冗余点 ：落在同一体素中的点被简化为一个点，有效地对点云进行下采样。
# Voxel Grid
point_cloud_downsampled = point_cloud.voxel_down_sample(voxel_size=1)
下采样过程的结果是点云的点数减少，但仍保留其主要特征。
4. 使用 RANSAC 进行分割
RANSAC（随机采样一致性）由 Fischler 和 Bolles 于 1981 年发明，作为解决在有噪声数据和离群值中拟合模型（如直线、平面、圆等）的问题。该算法广泛应用于计算机视觉、图像处理以及其他需要对模型参数进行稳健估计的领域。
RANSAC 算法的步骤如下：
- 随机选择 s 个样本，这是拟合模型所需的最小样本数量。
- 使用随机选择的样本拟合模型。
- 统计在误差范围 e 内拟合模型的点的数量 M。
- 重复步骤 1-3 共 N 次。
- 选择具有最多内点 M 的模型。
在我们的场景中，我们选择
等于 3，即每次 RANSAC 迭代中随机采样的点的数量，
等于 2000，即执行 RANSAC 的迭代次数。
ransac_n
num_iterations
# Perform plane segmentation using RANSAC
plane_model, inliers = point_cloud.segment_plane(distance_threshold=distance_threshold, ransac_n=ransac_n, num_iterations=num_iterations)
# Extract inlier and outlier point clouds
inlier_cloud = point_cloud.select_by_index(inliers)
outlier_cloud = point_cloud.select_by_index(inliers, invert=True)

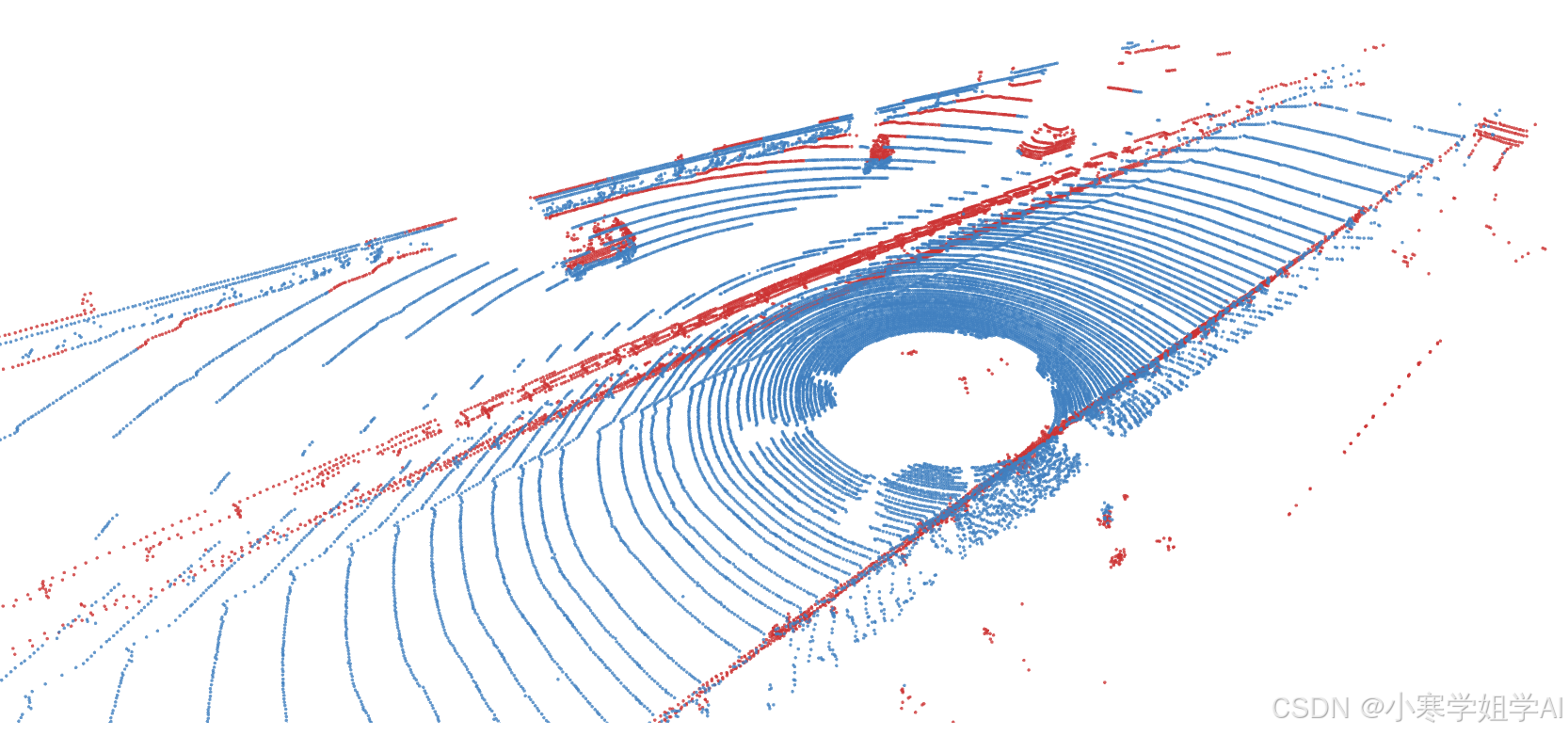

观察作为道路的平面是如何与所有其他垂直物体（如汽车、树木、广告牌等）分割的。内线是路段，离群值是其余部分。
5. 使用 DBSCAN 进行聚类
DBSCAN（Density-Based Spatial Clustering of Applications with Noise）是一种基于密度的聚类算法，由 Martin Ester、Hans-Peter Kriegel、Jörg Sander 和 Xiaowei Xu 于 1996 年提出。它特别适用于具有复杂结构且需要自动检测簇的数据集。
DBSCAN 算法的步骤如下：
- 选择参数 ε 和 MinPts，分别定义数据点的邻域范围和形成核心点所需的最小点数。
- 如果一个数据点的 ε 邻域内至少包含 MinPts 个点，则将其标记为核心点。
- 如果点 A 位于核心点 B 的 ε 邻域内，则 A 是从 B 直接密度可达的点。
- 密度可达性是传递的，通过连接相互密度可达的点来形成基于密度的簇。
- 噪声点是离群点，不是核心点，也不是从任何核心点密度可达的点。
在我们的场景中，我们将使用
值为 1.5，表示两点之间的最大距离，以便将其中一个点视为另一个点的邻域内。
值为 50，表示形成密集区域（核心点）所需的最小点数。
eps
min_points
labels = np.array(outlier_cloud.cluster_dbscan(eps=eps, min_points=min_points, print_progress=True))

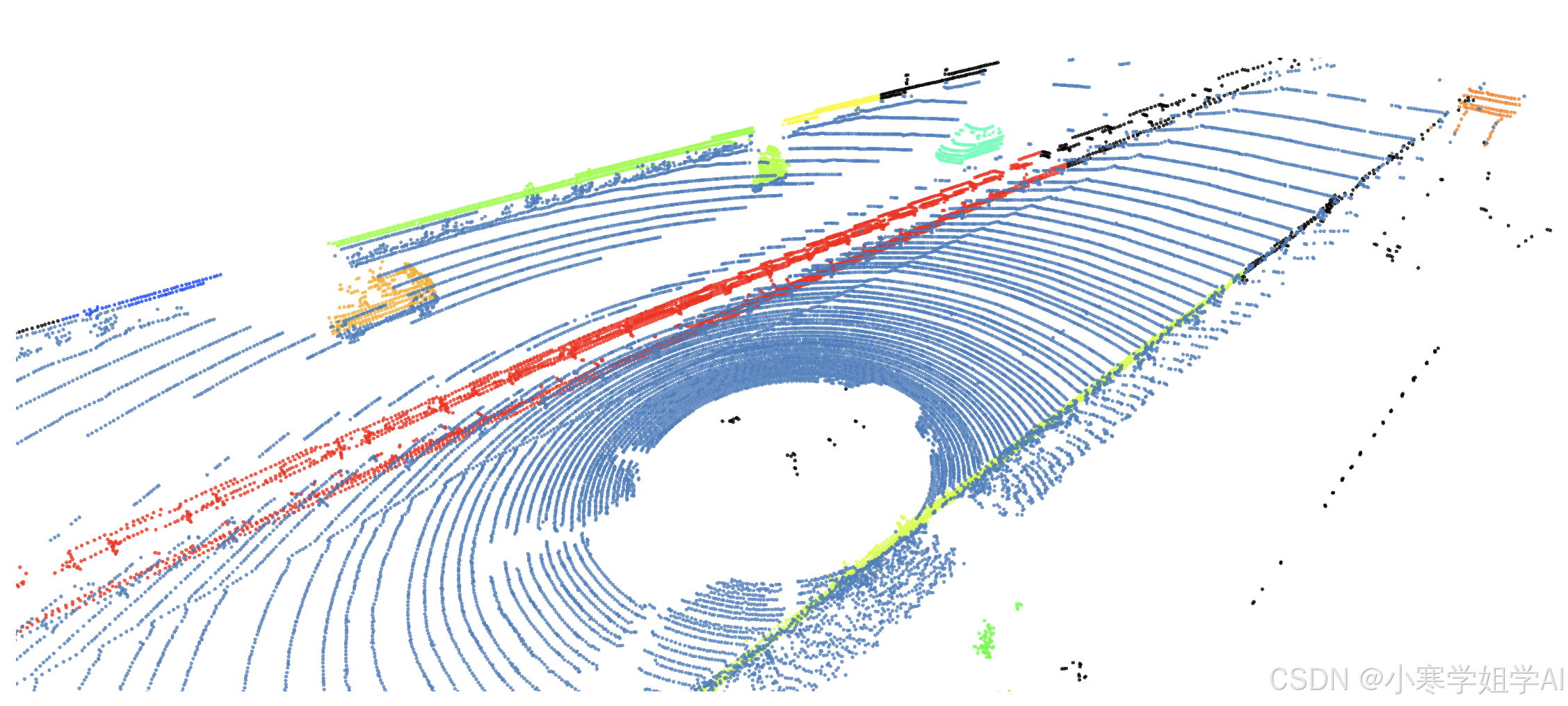

注意，道路是一个簇，所有其他障碍物都是单独的簇，用不同的颜色表示。

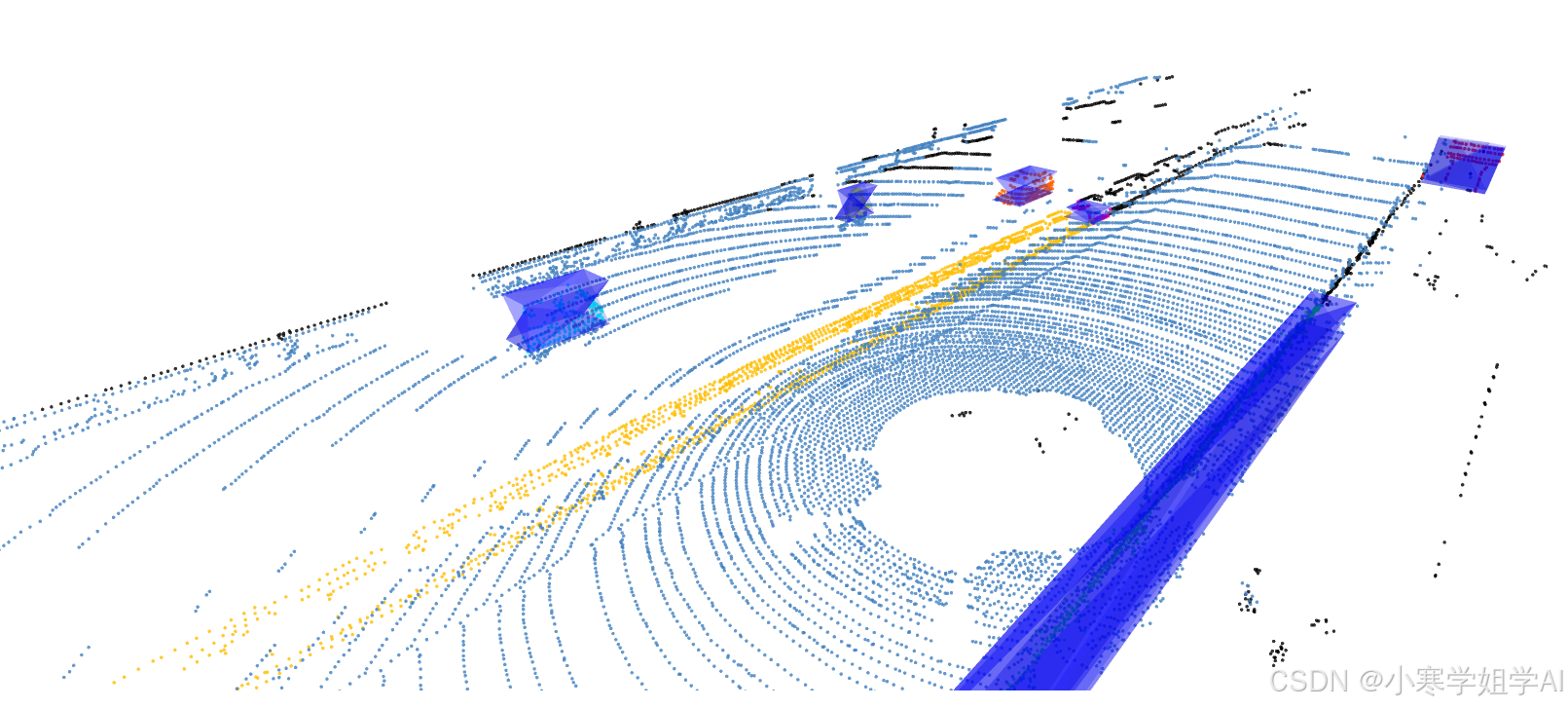

6. 使用 PCA 创建 3D 边界框
在成功对障碍物进行聚类后，下一步是将它们封闭在 3D 边界框内。由于我们在 3D 空间中操作，生成的边界框也位于 3D 空间中。然而，除了生成边界框之外，我们还需要获取它们的朝向信息。因为一些障碍物相对于自车可能处于不同的角度，我们希望构建精确包围每个障碍物的边界框。为此，我们将使用 PCA（主成分分析）：
-
计算点云子集的质心 ：质心即是点云的质量中心。
-
计算协方差矩阵 ：协方差矩阵总结了各个维度之间的关系。
-
应用 PCA ：对协方差矩阵进行 PCA 分析，找到特征向量和特征值。
-
主轴方向 ：具有最大特征值的特征向量表示最长轴和主要扩展方向。
-
次轴方向 ：具有最小特征值的特征向量表示最短轴和压缩方向。
-
定义 OBB 的朝向 ：使用这些特征向量来定义定向边界框（OBB）的朝向（旋转）。OBB 与特征向量对齐，使边界框代表点云的主要方向。
-
OBB 尺寸 ：每个轴上的 OBB 尺寸反映了沿相应特征向量的点的分布范围。
obs = []
# Group points by cluster label
indexes = pd.Series(range(len(labels))).groupby(labels, sort=False).apply(list).tolist()
# Iterate over clusters and perform PCA
for i in range(0, len(indexes)):
nb_points = len(outlier_cloud.select_by_index(indexes[i]).points)
if nb_points > MIN_POINTS and nb_points < MAX_POINTS:
sub_cloud = outlier_cloud.select_by_index(indexes[i])
obb = sub_cloud.get_oriented_bounding_box()
请注意，Open3D 的
函数在后台为我们执行了 PCA 操作。我们使用离群点云子集，因为这些点对应于车辆和其他物体，而内群点则代表道路。
get_oriented_bounding_box
7. 完整 Python 代码
## IMPORT LIBRARIES
import numpy as np
import copy
import os
import open3d as o3d
from utils import *
import matplotlib.pyplot as plt
import pandas as pd
from open3d.visualization.draw_plotly import get_plotly_fig
import plotly.graph_objects as go
print("Open3D version:", o3d.__version__)
import torch
# Check if CUDA is available
if torch.cuda.is_available():
# Set the device to GPU
device = torch.device("cuda")
print("Using GPU for computation.")
print("Device type:", torch.cuda.get_device_name(device))
print("Number of GPUs:", torch.cuda.device_count())
else:
# Set the device to CPU
device = torch.device("cpu")
print("GPU not available. Using CPU for computation.")
### ------------ VISUALIZATION ------------------- ###
def mode_plotly(point_cloud, mode='reflectance'):
# Extract the point cloud's coordinates as a numpy array
points = np.asarray(point_cloud.points)
# Calculate distances from the origin
distances = np.linalg.norm(points, axis=1)
# Check if the point cloud has color information
if hasattr(point_cloud, 'colors') and len(point_cloud.colors) == len(point_cloud.points):
colors = np.asarray(point_cloud.colors)
color_values = distances
else:
colors = np.zeros((len(point_cloud.points), 3)) # Default to black color if no colors provided
if mode == 'reflectance':
# Get the reflectance values from the red channel of colors
reflectivities = colors[:, 0]
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=reflectivities,
colorscale='RdPu', # Use the 'Viridis' colorscale (you can choose any other)
colorbar=dict(title="Reflectance"), # add a colorbar title
opacity=0.8,
showscale=True # Show the colorscale
)
)])
elif mode == 'distance':
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=color_values, # use color_values for color
colorscale='electric', # choose a colorscale
colorbar=dict(title="Distance"), # add a colorbar title
opacity=0.8
)
)])
else:
print("Wrong mode chosen! Choose either: 'reflectance' OR 'distance'!")
# Update the scene layout if needed
fig.update_layout(
scene=dict(
xaxis=dict(visible=False, range=[-70, 70]),
yaxis=dict(visible=False, range=[-40, 40]),
zaxis=dict(visible=False, range=[-5, 1]),
aspectmode='manual', aspectratio=dict(x=2, y=1, z=0.1),
camera=dict(
up=dict(x=0.15, y=0, z=1),
center=dict(x=0, y=0, z=0.1),
eye=dict(x=-0.3, y=0, z=0.2)
)
),
# plot_bgcolor='black', #background
# paper_bgcolor='black', #background
scene_dragmode='orbit'
)
return fig
def visualize_reflectance_distance(point_cloud, mode, save=False, show=True, output_folder='output', filename='processed'):
"""
Visualize a 3D point cloud and optionally save the plot as an image.
Parameters:
point_cloud (numpy.ndarray): The 3D point cloud data.
save (bool, optional): If True, the plot will be saved as an image. Default is False.
show (bool, optional): If True, the plot will be displayed interactively. Default is True.
output_folder (str, optional): The folder where the image will be saved. Default is 'output'.
filename (str, optional): The name of the saved image file. Default is 'processed'.
Returns:
plotly.graph_objects.Figure: The Plotly figure object.
"""
# Call get_plotly_fig with the provided point cloud and other parameters to get the Plotly figure
fig = mode_plotly(point_cloud, mode=mode)
if show:
fig.show()
# Save the plot as an image if save is True
if save:
image_path = f"{output_folder}/{filename}_processed.jpg"
fig.write_image(image_path, scale=3)
print(f"Plot saved as: {image_path}")
return fig
def plotly_fig(point_cloud):
# Extract the point cloud's coordinates as a numpy array
points = np.asarray(point_cloud.points)
# Check if the point cloud has color information
if hasattr(point_cloud, 'colors') and len(point_cloud.colors) == len(point_cloud.points):
colors = np.asarray(point_cloud.colors)
else:
colors = np.zeros((len(point_cloud.points), 3)) # Default to black color if no colors provided
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=colors,
opacity=0.8
)
)])
# Update the scene layout if needed
fig.update_layout(
scene=dict(
xaxis=dict(visible=False, range=[-70, 70]),
yaxis=dict(visible=False, range=[-40, 40]),
zaxis=dict(visible=False, range=[-5, 1]),
aspectmode='manual', aspectratio=dict(x=2, y=1, z=0.1),
camera=dict(
up=dict(x=0.15, y=0, z=1),
center=dict(x=0, y=0, z=0.1),
eye=dict(x=-0.3, y=0, z=0.2)
)
),
# plot_bgcolor='black', # background
# paper_bgcolor='black', # background
scene_dragmode='orbit'
)
return fig
def visualize_point_clouds(*point_clouds, show=True, save=False, output_folder='output', filename='combined'):
"""
Visualize one or more 3D point clouds and optionally save the plot as an image.
Parameters:
*point_clouds: Variable-length arguments, each representing a 3D point cloud data.
Can be numpy.ndarray or open3d.geometry.PointCloud.
show (bool, optional): If True, the plot will be displayed interactively. Default is True.
Returns:
plotly.graph_objects.Figure: The Plotly figure object.
"""
fig_combined = go.Figure()
for pc in point_clouds:
# Convert input to Open3D PointCloud if provided as a numpy array
if isinstance(pc, np.ndarray):
pc = o3d.geometry.PointCloud(o3d.utility.Vector3dVector(pc))
# Call get_plotly_fig to get the Plotly figure for the current point cloud
fig = plotly_fig(pc)
# Add the trace from the current figure to the combined figure
fig_combined.add_trace(fig.data[0])
# Update the layout if needed (common for all point clouds)
fig_combined.update_layout(fig.layout)
if show:
fig_combined.show()
# Save the plot as an image if save is True
if save:
print("\nSaving...")
image_path = f"{output_folder}/{filename}_combined.jpg"
fig_combined.write_image(image_path, scale=1)
print(f"Plot saved as: {image_path}")
return fig_combined
### ------------ LANE DETECTION ------------------- ###
def reflectivity_threshold(point_cloud, threshold=0.5):
"""
Filters a point cloud based on reflectivity threshold.
Parameters:
pcd (open3d.geometry.PointCloud): The input point cloud.
threshold (float, optional): The reflectivity threshold. Points with reflectivity above this value will be kept.
Default is 0.5.
Returns:
open3d.geometry.PointCloud: A new point cloud with points whose reflectivity is above the threshold.
"""
if not hasattr(point_cloud, 'colors'):
# If colors (reflectivity information) are not available, return the original point cloud
return point_cloud
# Get the reflectivity values (assuming reflectivity is stored in the red channel of the colors)
colors = np.asarray(point_cloud.colors)
reflectivities = colors[:, 0]
# Create a mask of points that have reflectivity above the threshold
mask = reflectivities > threshold
# Filter points and reflectivities using the mask
filtered_points = np.asarray(point_cloud.points)[mask]
filtered_colors = colors[mask]
# Create a new point cloud with the filtered points and colors
filtered_point_cloud = o3d.geometry.PointCloud()
filtered_point_cloud.points = o3d.utility.Vector3dVector(filtered_points)
filtered_point_cloud.colors = o3d.utility.Vector3dVector(filtered_colors)
return filtered_point_cloud
def roi_filter(pcd, roi_min=(0, -3, -2), roi_max=(20, 3, 0)):
"""
Filters a point cloud based on a region of interest (ROI) defined by the minimum and maximum coordinates.
Parameters:
pcd (open3d.geometry.PointCloud): The input point cloud.
roi_min (tuple, optional): The minimum (x, y, z) coordinates of the ROI. Default is (0, -3, -2).
roi_max (tuple, optional): The maximum (x, y, z) coordinates of the ROI. Default is (20, 3, 0).
Returns:
open3d.geometry.PointCloud: A new point cloud containing points within the specified ROI.
"""
# Convert the point cloud points to a numpy array
points = np.asarray(pcd.points)
# Create a mask for points that fall within the ROI
mask_roi = np.logical_and.reduce((
points[:, 0] >= roi_min[0],
points[:, 0] <= roi_max[0],
points[:, 1] >= roi_min[1],
points[:, 1] <= roi_max[1],
points[:, 2] >= roi_min[2],
points[:, 2] <= roi_max[2]
))
# Filter points using the mask
roi_points = points[mask_roi]
# Create a new point cloud with the filtered points
roi_pcd = o3d.geometry.PointCloud()
roi_pcd.points = o3d.utility.Vector3dVector(roi_points)
return roi_pcd
def lane_line_detection(point_cloud):
point_cloud_copy = copy.deepcopy(point_cloud)
print(point_cloud_copy)
# Thresholding
filtered_point_cloud = reflectivity_threshold(point_cloud_copy, threshold=0.45)
print(filtered_point_cloud)
# Region of Interest
roi_point_cloud = roi_filter(filtered_point_cloud, roi_min=(0, -3, -2), roi_max=(20, 3, 0))
print(roi_point_cloud)
return roi_point_cloud
def ransac(point_cloud, distance_threshold=0.33, ransac_n=3, num_iterations=100):
"""
RANSAC-based plane segmentation for a point cloud.
Parameters:
point_cloud (open3d.geometry.PointCloud): The input point cloud.
distance_threshold (float, optional): The maximum distance a point can be from the plane to be considered an inlier.
Default is 0.33.
ransac_n (int, optional): The number of points to randomly sample for each iteration of RANSAC. Default is 3.
num_iterations (int, optional): The number of RANSAC iterations to perform. Default is 100.
Returns:
open3d.geometry.PointCloud, open3d.geometry.PointCloud: Two point clouds representing the inliers and outliers
of the segmented plane, respectively.
"""
# Perform plane segmentation using RANSAC
plane_model, inliers = point_cloud.segment_plane(distance_threshold=distance_threshold, ransac_n=ransac_n,
num_iterations=num_iterations)
# Extract inlier and outlier point clouds
inlier_cloud = point_cloud.select_by_index(inliers)
outlier_cloud = point_cloud.select_by_index(inliers, invert=True)
# Color the outlier cloud red and the inlier cloud blue
outlier_cloud.paint_uniform_color([0.8, 0.2, 0.2]) # Red
inlier_cloud.paint_uniform_color([0.25, 0.5, 0.75]) # Blue
return outlier_cloud, inlier_cloud
def dbscan(outlier_cloud, eps=1.0, min_points=10):
"""
Perform Density-Based Spatial Clustering of Applications with Noise (DBSCAN) on the input point cloud.
Parameters:
outlier_cloud (open3d.geometry.PointCloud): The input point cloud to be clustered.
eps (float, optional): The maximum distance between two points for one to be considered as in the neighborhood of the other.
Default is 1.0.
min_points (int, optional): The minimum number of points required to form a dense region (core points). Default is 10.
Returns:
open3d.geometry.PointCloud: The input point cloud with updated cluster colors.
numpy.ndarray: Array of cluster labels assigned to each point in the point cloud.
"""
# Perform DBSCAN clustering on the input point cloud
labels = np.array(outlier_cloud.cluster_dbscan(eps=eps, min_points=min_points, print_progress=True))
# Find the maximum cluster label to get the total number of clusters
max_label = labels.max()
print(f"\nPoint cloud has {max_label + 1} clusters")
# Generate colors for the clusters using a colormap
colors = plt.get_cmap("hsv")(labels / (max_label if max_label > 0 else 1))
colors[labels < 0] = 0
# Assign the computed colors to the point cloud
outlier_cloud.colors = open3d.utility.Vector3dVector(colors[:, :3])
# Return the point cloud with updated colors and the cluster labels
return outlier_cloud, labels
def get_bounding_boxes(labels, outlier_cloud, MAX_POINTS=300):
"""
Get axis-aligned bounding boxes (boxes) for clusters in a point cloud.
Parameters:
labels (numpy.ndarray): The cluster labels assigned to each point in the point cloud.
outlier_cloud (open3d.geometry.PointCloud): The point cloud containing the outlier points.
Returns:
list of open3d.geometry.OrientedBoundingBox: A list of axis-aligned bounding boxes (boxes) for each cluster.
"""
# Extract points for each cluster
clusters = {}
for i, label in enumerate(labels):
if label >= 0:
if label not in clusters:
clusters[label] = []
clusters[label].append(outlier_cloud.points[i])
# Filter out clusters with more than 300 points (optional)
clusters = {label: points for label, points in clusters.items() if len(points) <= MAX_POINTS}
# Create boxes for each cluster
boxes = []
for points in clusters.values():
cluster_cloud = o3d.geometry.PointCloud()
cluster_cloud.points = o3d.utility.Vector3dVector(points)
aabb = cluster_cloud.get_axis_aligned_bounding_box() #PCA
boxes.append(aabb)
return boxes
def get_trace(obb_boxes, fig):
width = 1.0
height = 2.0
depth = 3.0
for obb in obb_boxes:
# Get the eight corner points of the OBB
corners = np.asarray(obb.get_box_points())
# Extract x, y, and z coordinates of the corners
x = corners[:, 0]
y = corners[:, 1]
z = corners[:, 2]
# Create a Mesh3d trace for the oriented bounding box with opacity
obb_trace = go.Mesh3d(
x=x,
y=y,
z=z,
i=[0, 1, 2, 3, 4, 5, 6, 7, 0, 1, 2, 3, 4, 5, 6, 7, 0, 2, 6, 4, 1, 3, 7, 5],
j=[1, 2, 3, 0, 5, 6, 7, 4, 2, 3, 7, 6, 1, 0, 4, 5, 6, 7, 3, 2, 0, 1, 5, 4],
k=[2, 3, 0, 1, 6, 7, 4, 5, 3, 7, 6, 2, 0, 4, 5, 1, 7, 6, 2, 4, 1, 5, 0, 3],
color='blue',
opacity=0.2
)
# Add the Mesh3d trace to the figure
fig.add_trace(obb_trace)
return fig
def pca(labels, outlier_cloud, inlier_cloud, MAX_POINTS, MIN_POINTS):
"""
Perform PCA (Principal Component Analysis) on the point cloud clusters.
Parameters:
outlier_cloud (open3d.geometry.PointCloud): The point cloud containing the outlier points.
inlier_cloud (open3d.geometry.PointCloud): The point cloud containing the inlier points.
MAX_POINTS (int): The maximum number of points in a cluster to consider for PCA.
MIN_POINTS (int): The minimum number of points in a cluster to consider for PCA.
Returns:
list of open3d.geometry.OrientedBoundingBox: A list of oriented bounding boxes (OBB) for each cluster.
"""
obs = []
# Group points by cluster label
indexes = pd.Series(range(len(labels))).groupby(labels, sort=False).apply(list).tolist()
# Iterate over clusters and perform PCA
for i in range(0, len(indexes)):
nb_points = len(outlier_cloud.select_by_index(indexes[i]).points)
if nb_points > MIN_POINTS and nb_points < MAX_POINTS:
sub_cloud = outlier_cloud.select_by_index(indexes[i])
obb = sub_cloud.get_oriented_bounding_box()
obb.color = (0.5, 0, 0.5)
obs.append(obb)
# Combine the outlier cloud, PCA bounding boxes, and inlier cloud in a list
list_of_visuals = []
list_of_visuals.append(outlier_cloud)
list_of_visuals.extend(obs)
list_of_visuals.append(inlier_cloud)
return list_of_visuals
if __name__ == '__main__':
# Get the current directory
current_directory = os.getcwd()
# Go back to the parent directory
parent_directory = os.path.dirname(current_directory)
# Set input directory
point_cloud_folder = os.path.join(parent_directory, 'Data', 'KITTI_PCD')
output_folder = os.path.join(parent_directory, 'Data', 'Output')
# Choose index
index = 357
# Get pcd file
point_cloud_path = os.path.join(point_cloud_folder, os.listdir(point_cloud_folder)[index])
point_cloud = open3d.io.read_point_cloud(point_cloud_path)
# Separate points and Colors
points = np.asarray(point_cloud.points)
colors = np.asarray(point_cloud.colors)
print("\n Point Cloud: ")
points = np.asarray(points)
print(points)
print(points.shape)
print("\n Colors: ")
colors = np.asarray(colors)
print(colors)
print(colors.shape)
### ------------------ 1. VISUALIZATION ------------------------- ###
# visualization_draw_geometry(point_cloud, background='black') # Dark background
# visualization_draw_geometry(point_cloud, background='white') # White background
# Visualize with Plotly
plotly_distance(points, show=False)
# Visualize Reflectance
visualize_reflectance_distance(point_cloud, mode='reflectance', save=False, show=False, output_folder=output_folder, filename='test')
# Visualize Distance
visualize_reflectance_distance(point_cloud, mode='distance', save=False, show=False, output_folder=output_folder, filename='test')
# Thresholding
filtered_point_cloud = reflectivity_threshold(point_cloud, threshold=0.5)
visualize_point_clouds(point_cloud.paint_uniform_color((0.7, 0.7, 0.7)),
filtered_point_cloud.paint_uniform_color((0.8, 0.2, 0.2)), show=False)
# Region of Interest
roi_point_cloud = roi_filter(point_cloud, roi_min=(0, -3, -2), roi_max=(20, 3, 0))
visualize_point_clouds(point_cloud.paint_uniform_color((0.7, 0.7, 0.7)),
roi_point_cloud.paint_uniform_color((0.34, 0.55, 0.67)), show=False)
# Visualize all point clouds
visualize_point_clouds(point_cloud.paint_uniform_color((0.7, 0.7, 0.7)),
filtered_point_cloud.paint_uniform_color((1.0, 0.6, 0.6)),
roi_point_cloud.paint_uniform_color((0.68, 0.85, 0.9)),
show=False, save=False, output_folder=output_folder, filename='combined')
# Read point cloud
point_cloud = open3d.io.read_point_cloud(point_cloud_path)
# Lane Line Detection
roi_point_cloud = lane_line_detection(point_cloud)
visualize_point_clouds(point_cloud.paint_uniform_color((0, 0, 0)),
roi_point_cloud.paint_uniform_color((0.2, 0.5, 0.3)), show=False)
### ----- Downsampling
# Read point cloud
point_cloud = open3d.io.read_point_cloud(point_cloud_path)
# Voxel Grid
print("Number of points BEFORE: ", len(point_cloud.points))
point_cloud_downsampled = point_cloud.voxel_down_sample(voxel_size=0.2)
print("Number of points AFTER: ", len(point_cloud_downsampled.points))
visualize_point_clouds(point_cloud_downsampled.paint_uniform_color((0.5, 0.0, 0.5)), show=False)
### ------- SEGMENTATION
outlier_cloud, inlier_cloud, = ransac(point_cloud_downsampled, distance_threshold=0.33, ransac_n=3, num_iterations=2000)
visualize_point_clouds(outlier_cloud, inlier_cloud, show=False)
### ------- CLUSTERING
roi_outliers, labels = dbscan(outlier_cloud, eps=1.5, min_points=50)
visualize_point_clouds(roi_outliers, inlier_cloud, show=False)
### ------- PCA
# Method 1:
boxes = get_bounding_boxes(labels, roi_outliers, MAX_POINTS=1500)
print("\nNumber of boxes: ", len(boxes))
fig = visualize_point_clouds(roi_outliers, inlier_cloud, show=False)
fig = get_trace(boxes, fig)
#fig.show()
# Method 2:
list_of_visuals = pca(labels, roi_outliers, inlier_cloud, MAX_POINTS=1500, MIN_POINTS=5)
print(list_of_visuals)
#visualization_draw_geometry_list(list_of_visuals)
# Normals
point_cloud_downsampled.estimate_normals(search_param=o3d.geometry.KDTreeSearchParamHybrid(radius=0.1, max_nn=30))
utils.py
import open3d
import numpy as np
import plotly.graph_objects as go
def visualization_draw_geometry(pcd, background='black'):
vis = open3d.visualization.Visualizer()
vis.create_window()
vis.add_geometry(pcd)
if background=='black':
vis.get_render_option().background_color = np.asarray([0, 0, 0])
elif background=='white':
vis.get_render_option().background_color = np.asarray([1, 1, 1])
else:
print("Wrong background chosen! Choose either 'white' OR 'black'.")
vis.run()
vis.destroy_window()
def plotly_distance(points, show=True):
# Calculate distances from the origin
distances = np.linalg.norm(points, axis=1)
# Create the 3D scatter plot
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=distances, # use distances for color
colorscale='Inferno', # choose a colorscale
colorbar=dict(title="Distance from Origin"), # add a colorbar title
opacity=0.8
)
)])
fig.update_scenes(aspectmode='data')
if show == True:
fig.show()
def visualization_draw_geometry_list(pcd_list):
vis = open3d.visualization.Visualizer()
vis.create_window()
for pcd in pcd_list:
vis.add_geometry(pcd)
vis.get_render_option().background_color = np.asarray([1, 1, 1])
vis.run()
vis.destroy_window()
def mode_plotly(point_cloud, mode='reflectance'):
# Extract the point cloud's coordinates as a numpy array
points = np.asarray(point_cloud.points)
# Calculate distances from the origin
distances = np.linalg.norm(points, axis=1)
# Check if the point cloud has color information
if hasattr(point_cloud, 'colors') and len(point_cloud.colors) == len(point_cloud.points):
colors = np.asarray(point_cloud.colors)
color_values = distances
else:
colors = np.zeros((len(point_cloud.points), 3)) # Default to black color if no colors provided
if mode == 'reflectance':
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=colors,
opacity=0.8
)
)])
elif mode == 'distance':
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=color_values, # use color_values for color
colorscale='Inferno', # choose a colorscale
colorbar=dict(title="Color Value"), # add a colorbar title
opacity=0.8
)
)])
else:
print("Wrong mode chosen! Choose either: 'reflectance' OR 'distance'!")
# Update the scene layout if needed
fig.update_layout(
scene=dict(
xaxis=dict(visible=False, range=[-70, 70]),
yaxis=dict(visible=False, range=[-40, 40]),
zaxis=dict(visible=False, range=[-5, 1]),
aspectmode='manual', aspectratio=dict(x=2, y=1, z=0.1),
camera=dict(
up=dict(x=0.15, y=0, z=1),
center=dict(x=0, y=0, z=0.1),
eye=dict(x=-0.3, y=0, z=0.2)
)
),
# plot_bgcolor='black', #background
# paper_bgcolor='black', #background
scene_dragmode='orbit'
)
return fig
def visualize_reflectance_distance(point_cloud, mode, save=False, show=True, output_folder='output',
filename='processed'):
"""
Visualize a 3D point cloud and optionally save the plot as an image.
Parameters:
point_cloud (numpy.ndarray): The 3D point cloud data.
save (bool, optional): If True, the plot will be saved as an image. Default is False.
show (bool, optional): If True, the plot will be displayed interactively. Default is True.
output_folder (str, optional): The folder where the image will be saved. Default is 'output'.
filename (str, optional): The name of the saved image file. Default is 'processed'.
Returns:
plotly.graph_objects.Figure: The Plotly figure object.
"""
# Call get_plotly_fig with the provided point cloud and other parameters to get the Plotly figure
fig = mode_plotly(point_cloud, mode=mode)
if show:
fig.show()
# Save the plot as an image if save is True
if save:
image_path = f"{output_folder}/{filename}_processed.jpg"
fig.write_image(image_path, scale=3)
print(f"Plot saved as: {image_path}")
return fig
def plotly_fig(point_cloud):
# Extract the point cloud's coordinates as a numpy array
points = np.asarray(point_cloud.points)
# Check if the point cloud has color information
if hasattr(point_cloud, 'colors') and len(point_cloud.colors) == len(point_cloud.points):
colors = np.asarray(point_cloud.colors)
else:
colors = np.zeros((len(point_cloud.points), 3)) # Default to black color if no colors provided
fig = go.Figure(data=[go.Scatter3d(
x=points[:, 0],
y=points[:, 1],
z=points[:, 2],
mode='markers',
marker=dict(
size=2,
color=colors,
opacity=0.8
)
)])
# Update the scene layout if needed
fig.update_layout(
scene=dict(
xaxis=dict(visible=False, range=[-70, 70]),
yaxis=dict(visible=False, range=[-40, 40]),
zaxis=dict(visible=False, range=[-5, 1]),
aspectmode='manual', aspectratio=dict(x=2, y=1, z=0.1),
camera=dict(
up=dict(x=0.15, y=0, z=1),
center=dict(x=0, y=0, z=0.1),
eye=dict(x=-0.3, y=0, z=0.2)
)
),
plot_bgcolor='black', # background
paper_bgcolor='black', # background
scene_dragmode='orbit'
)
return fig
def visualize_point_clouds(*point_clouds, show=True, save=False, output_folder='output', filename='combined'):
"""
Visualize one or more 3D point clouds and optionally save the plot as an image.
Parameters:
*point_clouds: Variable-length arguments, each representing a 3D point cloud data.
Can be numpy.ndarray or open3d.geometry.PointCloud.
show (bool, optional): If True, the plot will be displayed interactively. Default is True.
Returns:
plotly.graph_objects.Figure: The Plotly figure object.
"""
fig_combined = go.Figure()
for pc in point_clouds:
# Convert input to Open3D PointCloud if provided as a numpy array
if isinstance(pc, np.ndarray):
pc = o3d.geometry.PointCloud(o3d.utility.Vector3dVector(pc))
# Call get_plotly_fig to get the Plotly figure for the current point cloud
fig = plotly_fig(pc)
# Add the trace from the current figure to the combined figure
fig_combined.add_trace(fig.data[0])
# Update the layout if needed (common for all point clouds)
fig_combined.update_layout(fig.layout)
if show:
fig_combined.show()
# Save the plot as an image if save is True
if save:
print("\nSaving...")
image_path = f"{output_folder}/{filename}_combined.jpg"
fig_combined.write_image(image_path, scale=1)
print(f"Plot saved as: {image_path}")
return fig_combined
### ------------ LANE DETECTION ------------------- ###
def reflectivity_threshold(point_cloud, threshold=0.5):
"""
Filters a point cloud based on reflectivity threshold.
Parameters:
pcd (open3d.geometry.PointCloud): The input point cloud.
threshold (float, optional): The reflectivity threshold. Points with reflectivity above this value will be kept.
Default is 0.5.
Returns:
open3d.geometry.PointCloud: A new point cloud with points whose reflectivity is above the threshold.
"""
if not hasattr(point_cloud, 'colors'):
# If colors (reflectivity information) are not available, return the original point cloud
return point_cloud
# Get the reflectivity values (assuming reflectivity is stored in the red channel of the colors)
colors = np.asarray(point_cloud.colors)
reflectivities = colors[:, 0]
# Create a mask of points that have reflectivity above the threshold
mask = reflectivities > threshold
# Filter points and reflectivities using the mask
filtered_points = np.asarray(point_cloud.points)[mask]
filtered_colors = colors[mask]
# Create a new point cloud with the filtered points and colors
filtered_point_cloud = o3d.geometry.PointCloud()
filtered_point_cloud.points = o3d.utility.Vector3dVector(filtered_points)
filtered_point_cloud.colors = o3d.utility.Vector3dVector(filtered_colors)
return filtered_point_cloud
def roi_filter(pcd, roi_min=(0, -3, -2), roi_max=(20, 3, 0)):
"""
Filters a point cloud based on a region of interest (ROI) defined by the minimum and maximum coordinates.
Parameters:
pcd (open3d.geometry.PointCloud): The input point cloud.
roi_min (tuple, optional): The minimum (x, y, z) coordinates of the ROI. Default is (0, -3, -2).
roi_max (tuple, optional): The maximum (x, y, z) coordinates of the ROI. Default is (20, 3, 0).
Returns:
open3d.geometry.PointCloud: A new point cloud containing points within the specified ROI.
"""
# Convert the point cloud points to a numpy array
points = np.asarray(pcd.points)
# Create a mask for points that fall within the ROI
mask_roi = np.logical_and.reduce((
points[:, 0] >= roi_min[0],
points[:, 0] <= roi_max[0],
points[:, 1] >= roi_min[1],
points[:, 1] <= roi_max[1],
points[:, 2] >= roi_min[2],
points[:, 2] <= roi_max[2]
))
# Filter points using the mask
roi_points = points[mask_roi]
# Create a new point cloud with the filtered points
roi_pcd = o3d.geometry.PointCloud()
roi_pcd.points = o3d.utility.Vector3dVector(roi_points)
return roi_pcd
def lane_line_detection(point_cloud):
point_cloud_copy = copy.deepcopy(point_cloud)
print(point_cloud_copy)
# Thresholding
filtered_point_cloud = reflectivity_threshold(point_cloud_copy, threshold=0.45)
print(filtered_point_cloud)
# Region of Interest
roi_point_cloud = roi_filter(filtered_point_cloud, roi_min=(0, -3, -2), roi_max=(20, 3, 0))
print(roi_point_cloud)
return roi_point_cloud
def ransac(point_cloud, distance_threshold=0.33, ransac_n=3, num_iterations=100):
"""
RANSAC-based plane segmentation for a point cloud.
Parameters:
point_cloud (open3d.geometry.PointCloud): The input point cloud.
distance_threshold (float, optional): The maximum distance a point can be from the plane to be considered an inlier.
Default is 0.33.
ransac_n (int, optional): The number of points to randomly sample for each iteration of RANSAC. Default is 3.
num_iterations (int, optional): The number of RANSAC iterations to perform. Default is 100.
Returns:
open3d.geometry.PointCloud, open3d.geometry.PointCloud: Two point clouds representing the inliers and outliers
of the segmented plane, respectively.
"""
# Perform plane segmentation using RANSAC
plane_model, inliers = point_cloud.segment_plane(distance_threshold=distance_threshold, ransac_n=ransac_n,
num_iterations=num_iterations)
# Extract inlier and outlier point clouds
inlier_cloud = point_cloud.select_by_index(inliers)
outlier_cloud = point_cloud.select_by_index(inliers, invert=True)
# Color the outlier cloud red and the inlier cloud blue
outlier_cloud.paint_uniform_color([0.8, 0.2, 0.2]) # Red
inlier_cloud.paint_uniform_color([0.25, 0.5, 0.75]) # Blue
return outlier_cloud, inlier_cloud
def dbscan(outlier_cloud, eps=1.0, min_points=10):
labels = np.array(outlier_cloud.cluster_dbscan(eps=eps, min_points=min_points, print_progress=True))
max_label = labels.max()
print(f"\npoint cloud has {max_label + 1} clusters")
colors = plt.get_cmap("inferno_r")(labels / (max_label if max_label > 0 else 1))
colors[labels < 0] = 0
outlier_cloud.colors = open3d.utility.Vector3dVector(colors[:, :3])
return outlier_cloud, labels
def get_bounding_boxes(labels, outlier_cloud, MAX_POINTS=300):
"""
Get axis-aligned bounding boxes (boxes) for clusters in a point cloud.
Parameters:
labels (numpy.ndarray): The cluster labels assigned to each point in the point cloud.
outlier_cloud (open3d.geometry.PointCloud): The point cloud containing the outlier points.
Returns:
list of open3d.geometry.OrientedBoundingBox: A list of axis-aligned bounding boxes (boxes) for each cluster.
"""
# Extract points for each cluster
clusters = {}
for i, label in enumerate(labels):
if label >= 0:
if label not in clusters:
clusters[label] = []
clusters[label].append(outlier_cloud.points[i])
# Filter out clusters with more than 300 points (optional)
clusters = {label: points for label, points in clusters.items() if len(points) <= MAX_POINTS}
# Create boxes for each cluster
boxes = []
for points in clusters.values():
cluster_cloud = o3d.geometry.PointCloud()
cluster_cloud.points = o3d.utility.Vector3dVector(points)
aabb = cluster_cloud.get_axis_aligned_bounding_box() # PCA
boxes.append(aabb)
return boxes
def pca(labels, outlier_cloud, inlier_cloud, MAX_POINTS, MIN_POINTS):
"""
Perform PCA (Principal Component Analysis) on the point cloud clusters.
Parameters:
outlier_cloud (open3d.geometry.PointCloud): The point cloud containing the outlier points.
inlier_cloud (open3d.geometry.PointCloud): The point cloud containing the inlier points.
MAX_POINTS (int): The maximum number of points in a cluster to consider for PCA.
MIN_POINTS (int): The minimum number of points in a cluster to consider for PCA.
Returns:
list of open3d.geometry.OrientedBoundingBox: A list of oriented bounding boxes (OBB) for each cluster.
"""
obs = []
# Group points by cluster label
indexes = pd.Series(range(len(labels))).groupby(labels, sort=False).apply(list).tolist()
# Iterate over clusters and perform PCA
for i in range(0, len(indexes)):
nb_points = len(outlier_cloud.select_by_index(indexes[i]).points)
if nb_points > MIN_POINTS and nb_points < MAX_POINTS:
sub_cloud = outlier_cloud.select_by_index(indexes[i])
obb = sub_cloud.get_oriented_bounding_box()
obb.color = (1, 1, 0) # Set color of the oriented bounding box to yellow (1, 1, 0)
obs.append(obb)
# Combine the outlier cloud, PCA bounding boxes, and inlier cloud in a list
list_of_visuals = []
list_of_visuals.append(outlier_cloud)
list_of_visuals.extend(obs)
list_of_visuals.append(inlier_cloud)
return list_of_visuals
def get_trace(obb_boxes, fig):
for obb in obb_boxes:
# Get the eight corner points of the OBB
corners = np.asarray(obb.get_box_points())
# Extract x, y, and z coordinates of the corners
x = corners[:, 0]
y = corners[:, 1]
z = corners[:, 2]
# Create a Mesh3d trace for the oriented bounding box with opacity
obb_trace = go.Mesh3d(
x=x,
y=y,
z=z,
i=[0, 1, 2, 3, 4, 5, 6, 7, 0, 1, 2, 3, 4, 5, 6, 7, 0, 2, 6, 4, 1, 3, 7, 5],
j=[1, 2, 3, 0, 5, 6, 7, 4, 2, 3, 7, 6, 1, 0, 4, 5, 6, 7, 3, 2, 0, 1, 5, 4],
k=[2, 3, 0, 1, 6, 7, 4, 5, 3, 7, 6, 2, 0, 4, 5, 1, 7, 6, 2, 4, 1, 5, 0, 3],
color='blue',
opacity=0.3
)
# Add the Mesh3d trace to the figure
fig.add_trace(obb_trace)
return fig
