【小白深度教程 1.19】手把手教你使用 Pytorch3D（4）使用 NeRF 来进行三维重建和新视角合成

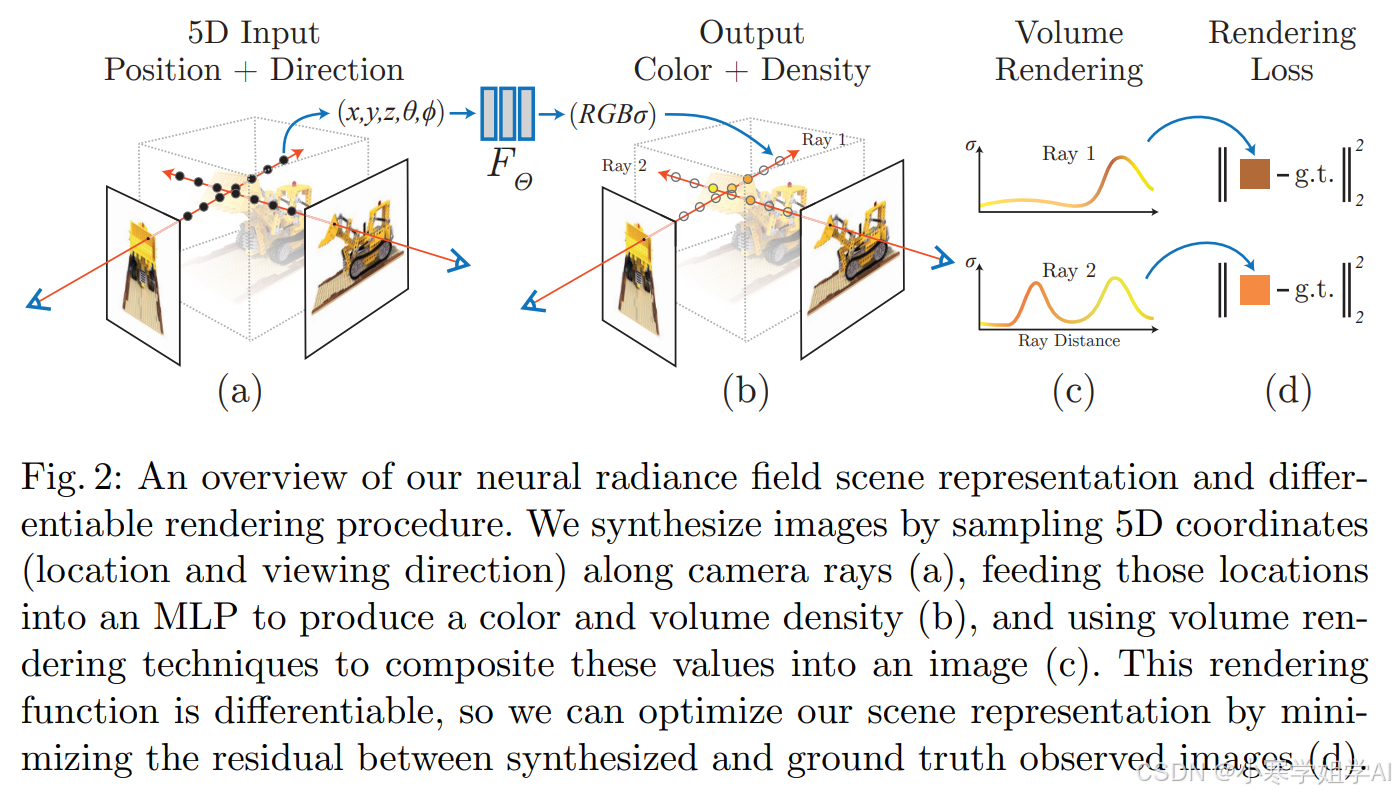

本教程展示了如何使用可微分隐式函数渲染（differentiable implicit function rendering），来拟合给定一组场景视图的神经辐射场（Neural Radiance Field，简称 NeRF）。

更具体地说，本教程将解释如何:

• 用图像网格或蒙特卡罗射线采样创建一个可微分隐式函数渲染器。
• 创建场景的隐式模型。
• 利用可微隐式渲染器对输入图像拟合隐式函数（Neural Radiance Field）。
• 把学习后的内隐函数形象化。

请注意，所提供的隐式模型是NeRF的简化版本:

Ben Mildenhall, Pratul P. Srinivasan, Matthew Tancik, Jonathan T. Barron, Ravi Ramamoorthi, Ren Ng: NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis, ECCV 2020.

这些简化包括:

• 射线采样：本教程不进行分层射线采样，而是在等距深度进行射线采样。
• 渲染：我们只做一个渲染步骤，而不是像最初的实现那样，分别做一个粗略和精细的渲染流程。
• 架构：我们的网络较浅，这可能会以表面细节为代价进行更快的优化。
• 掩模损失：由于我们的观察包括分割掩模，我们还优化了一个轮廓损失，迫使光线要么被完全吸收在体积内，要么完全通过它。

1. 安装和导入模块

确保安装了“torch”和“torchvision”。如果’ pytorch3d '未安装，请使用以下命令安装：

pip install --no-index --no-cache-dir pytorch3d -f https://dl.fbaipublicfiles.com/pytorch3d/packaging/wheels/{version_str}/download.html

或者从 github 源码安装：

pip install 'git+https://github.com/facebookresearch/pytorch3d.git@stable'

然后导入模块：

# %matplotlib inline
# %matplotlib notebook
import os
import sys
import time
import json
import glob
import torch
import math
import matplotlib.pyplot as plt
import numpy as np
from PIL import Image
from IPython import display
from tqdm.notebook import tqdm

# Data structures and functions for rendering
from pytorch3d.structures import Volumes
from pytorch3d.transforms import so3_exp_map
from pytorch3d.renderer import (
    FoVPerspectiveCameras,
    NDCMultinomialRaysampler,
    MonteCarloRaysampler,
    EmissionAbsorptionRaymarcher,
    ImplicitRenderer,
    RayBundle,
    ray_bundle_to_ray_points,
)

# obtain the utilized device
if torch.cuda.is_available():
    device = torch.device("cuda:0")
    torch.cuda.set_device(device)
else:
    print(
        'Please note that NeRF is a resource-demanding method.'
        + ' Running this notebook on CPU will be extremely slow.'
        + ' We recommend running the example on a GPU'
        + ' with at least 10 GB of memory.'
    )
    device = torch.device("cpu")

!wget https://raw.githubusercontent.com/facebookresearch/pytorch3d/main/docs/tutorials/utils/plot_image_grid.py
!wget https://raw.githubusercontent.com/facebookresearch/pytorch3d/main/docs/tutorials/utils/generate_cow_renders.py
from plot_image_grid import image_grid
from generate_cow_renders import generate_cow_renders

2. 生成场景图像和 Mask

下面的单元格生成我们的训练数据。它从“fit_textured_mesh”中渲染奶牛网格（Mesh）：

1. 由牛网格渲染器生成的一批图像和轮廓张量。
2. 对应于每个渲染的一组摄像机。

注意：本教程的目的是解释隐式渲染的细节，我们不再解释在 generate_cow_renders 渲染函数中实现的网格渲染是如何工作的。

请参考上一节获取关于网格渲染的详细解释。

target_cameras, target_images, target_silhouettes = generate_cow_renders(num_views=40, azimuth_range=180)
print(f'Generated {len(target_images)} images/silhouettes/cameras.')

3. 初始化隐式渲染器

以下内容初始化了一个隐式渲染器，该渲染器从目标图像的每个像素发射一条射线，并在射线上均匀采样一组点。在每个射线点上，通过查询场景神经模型中对应的位置来获取相应的密度和颜色值（该模型将在后续单元格中描述和实例化）。

渲染器由一个*光线推进器（raymarcher） 和一个 射线采样器（raysampler）*组成。

• 射线采样器 负责从图像像素发射射线并沿射线采样点。在这里，我们使用了两种不同的射线采样器：
  • MonteCarloRaysampler 用于从图像平面的一部分随机像素子集生成射线。在 训练 期间，像素的随机子采样用于减少隐式模型的内存消耗。
  • NDCMultinomialRaysampler 遵循标准的 PyTorch3D 坐标网格约定（+X 从右向左；+Y 从下向上；+Z 远离用户）。与场景的隐式模型结合时， NDCMultinomialRaysampler 会消耗大量内存，因此仅在 测试 时用于可视化训练结果。
• 光线推进器 将每条射线沿途采样的密度和颜色渲染为该射线源像素的颜色和不透明度值。这里我们使用 EmissionAbsorptionRaymarcher ，它实现了标准的发射-吸收光线推进算法。

# render_size describes the size of both sides of the
# rendered images in pixels. Since an advantage of
# Neural Radiance Fields are high quality renders
# with a significant amount of details, we render
# the implicit function at double the size of
# target images.
render_size = target_images.shape[1] * 2

# Our rendered scene is centered around (0,0,0)
# and is enclosed inside a bounding box
# whose side is roughly equal to 3.0 (world units).
volume_extent_world = 3.0

# 1) Instantiate the raysamplers.

# Here, NDCMultinomialRaysampler generates a rectangular image
# grid of rays whose coordinates follow the PyTorch3D
# coordinate conventions.
raysampler_grid = NDCMultinomialRaysampler(
    image_height=render_size,
    image_width=render_size,
    n_pts_per_ray=128,
    min_depth=0.1,
    max_depth=volume_extent_world,
)

# MonteCarloRaysampler generates a random subset
# of `n_rays_per_image` rays emitted from the image plane.
raysampler_mc = MonteCarloRaysampler(
    min_x = -1.0,
    max_x = 1.0,
    min_y = -1.0,
    max_y = 1.0,
    n_rays_per_image=750,
    n_pts_per_ray=128,
    min_depth=0.1,
    max_depth=volume_extent_world,
)

# 2) Instantiate the raymarcher.
# Here, we use the standard EmissionAbsorptionRaymarcher
# which marches along each ray in order to render
# the ray into a single 3D color vector
# and an opacity scalar.
raymarcher = EmissionAbsorptionRaymarcher()

# Finally, instantiate the implicit renders
# for both raysamplers.
renderer_grid = ImplicitRenderer(
    raysampler=raysampler_grid, raymarcher=raymarcher,
)
renderer_mc = ImplicitRenderer(
    raysampler=raysampler_mc, raymarcher=raymarcher,
)

4. 定义神经辐射场模型

在此单元格中，我们定义了 NeuralRadianceField 模块，它在场景的 3D 域中指定了一个连续的颜色和不透明度场。

NeuralRadianceField （NeRF）的 forward 函数接收一组参数化渲染射线束的张量作为输入。射线束随后会转换为场景中世界坐标系下的 3D 射线点。每个 3D 点随后使用 HarmonicEmbedding 层（在下一个单元格中定义）映射到谐波表示。谐波嵌入随后进入 NeRF 模型的 颜色 和 不透明度 分支，为每个射线点标注一个 3D 向量和一个范围在 [0-1] 之间的 1D 标量，分别定义该点的 RGB 颜色和不透明度。

由于 NeRF 占用较大的内存空间，我们还实现了 NeuralRadianceField.forward_batched 方法。该方法将输入射线拆分为批次，并在循环中为每个批次单独执行 forward 函数。这使得我们可以在不耗尽 GPU 内存的情况下渲染大量射线。通常情况下， forward_batched 会用于渲染从图像所有像素发射的射线，从而生成场景的全尺寸渲染。

class HarmonicEmbedding(torch.nn.Module):
    def __init__(self, n_harmonic_functions=60, omega0=0.1):
        """
        Given an input tensor `x` of shape [minibatch, ... , dim],
        the harmonic embedding layer converts each feature
        in `x` into a series of harmonic features `embedding`
        as follows:
            embedding[..., i*dim:(i+1)*dim] = [
                sin(x[..., i]),
                sin(2*x[..., i]),
                sin(4*x[..., i]),
                ...
                sin(2**(self.n_harmonic_functions-1) * x[..., i]),
                cos(x[..., i]),
                cos(2*x[..., i]),
                cos(4*x[..., i]),
                ...
                cos(2**(self.n_harmonic_functions-1) * x[..., i])
            ]

        Note that `x` is also premultiplied by `omega0` before
        evaluating the harmonic functions.
        """
        super().__init__()
        self.register_buffer(
            'frequencies',
            omega0 * (2.0 ** torch.arange(n_harmonic_functions)),
        )
    def forward(self, x):
        """
        Args:
            x: tensor of shape [..., dim]
        Returns:
            embedding: a harmonic embedding of `x`
                of shape [..., n_harmonic_functions * dim * 2]
        """
        embed = (x[..., None] * self.frequencies).view(*x.shape[:-1], -1)
        return torch.cat((embed.sin(), embed.cos()), dim=-1)


class NeuralRadianceField(torch.nn.Module):
    def __init__(self, n_harmonic_functions=60, n_hidden_neurons=256):
        super().__init__()
        """
        Args:
            n_harmonic_functions: The number of harmonic functions
                used to form the harmonic embedding of each point.
            n_hidden_neurons: The number of hidden units in the
                fully connected layers of the MLPs of the model.
        """

        # The harmonic embedding layer converts input 3D coordinates
        # to a representation that is more suitable for
        # processing with a deep neural network.
        self.harmonic_embedding = HarmonicEmbedding(n_harmonic_functions)

        # The dimension of the harmonic embedding.
        embedding_dim = n_harmonic_functions * 2 * 3

        # self.mlp is a simple 2-layer multi-layer perceptron
        # which converts the input per-point harmonic embeddings
        # to a latent representation.
        # Not that we use Softplus activations instead of ReLU.
        self.mlp = torch.nn.Sequential(
            torch.nn.Linear(embedding_dim, n_hidden_neurons),
            torch.nn.Softplus(beta=10.0),
            torch.nn.Linear(n_hidden_neurons, n_hidden_neurons),
            torch.nn.Softplus(beta=10.0),
        )

        # Given features predicted by self.mlp, self.color_layer
        # is responsible for predicting a 3-D per-point vector
        # that represents the RGB color of the point.
        self.color_layer = torch.nn.Sequential(
            torch.nn.Linear(n_hidden_neurons + embedding_dim, n_hidden_neurons),
            torch.nn.Softplus(beta=10.0),
            torch.nn.Linear(n_hidden_neurons, 3),
            torch.nn.Sigmoid(),
            # To ensure that the colors correctly range between [0-1],
            # the layer is terminated with a sigmoid layer.
        )

        # The density layer converts the features of self.mlp
        # to a 1D density value representing the raw opacity
        # of each point.
        self.density_layer = torch.nn.Sequential(
            torch.nn.Linear(n_hidden_neurons, 1),
            torch.nn.Softplus(beta=10.0),
            # Sofplus activation ensures that the raw opacity
            # is a non-negative number.
        )

        # We set the bias of the density layer to -1.5
        # in order to initialize the opacities of the
        # ray points to values close to 0.
        # This is a crucial detail for ensuring convergence
        # of the model.
        self.density_layer[0].bias.data[0] = -1.5

    def _get_densities(self, features):
        """
        This function takes `features` predicted by `self.mlp`
        and converts them to `raw_densities` with `self.density_layer`.
        `raw_densities` are later mapped to [0-1] range with
        1 - inverse exponential of `raw_densities`.
        """
        raw_densities = self.density_layer(features)
        return 1 - (-raw_densities).exp()

    def _get_colors(self, features, rays_directions):
        """
        This function takes per-point `features` predicted by `self.mlp`
        and evaluates the color model in order to attach to each
        point a 3D vector of its RGB color.

        In order to represent viewpoint dependent effects,
        before evaluating `self.color_layer`, `NeuralRadianceField`
        concatenates to the `features` a harmonic embedding
        of `ray_directions`, which are per-point directions
        of point rays expressed as 3D l2-normalized vectors
        in world coordinates.
        """
        spatial_size = features.shape[:-1]

        # Normalize the ray_directions to unit l2 norm.
        rays_directions_normed = torch.nn.functional.normalize(
            rays_directions, dim=-1
        )

        # Obtain the harmonic embedding of the normalized ray directions.
        rays_embedding = self.harmonic_embedding(
            rays_directions_normed
        )

        # Expand the ray directions tensor so that its spatial size
        # is equal to the size of features.
        rays_embedding_expand = rays_embedding[..., None, :].expand(
            *spatial_size, rays_embedding.shape[-1]
        )

        # Concatenate ray direction embeddings with
        # features and evaluate the color model.
        color_layer_input = torch.cat(
            (features, rays_embedding_expand),
            dim=-1
        )
        return self.color_layer(color_layer_input)


    def forward(
        self,
        ray_bundle: RayBundle,
        **kwargs,
    ):
        """
        The forward function accepts the parametrizations of
        3D points sampled along projection rays. The forward
        pass is responsible for attaching a 3D vector
        and a 1D scalar representing the point's
        RGB color and opacity respectively.

        Args:
            ray_bundle: A RayBundle object containing the following variables:
                origins: A tensor of shape `(minibatch, ..., 3)` denoting the
                    origins of the sampling rays in world coords.
                directions: A tensor of shape `(minibatch, ..., 3)`
                    containing the direction vectors of sampling rays in world coords.
                lengths: A tensor of shape `(minibatch, ..., num_points_per_ray)`
                    containing the lengths at which the rays are sampled.

        Returns:
            rays_densities: A tensor of shape `(minibatch, ..., num_points_per_ray, 1)`
                denoting the opacity of each ray point.
            rays_colors: A tensor of shape `(minibatch, ..., num_points_per_ray, 3)`
                denoting the color of each ray point.
        """
        # We first convert the ray parametrizations to world
        # coordinates with `ray_bundle_to_ray_points`.
        rays_points_world = ray_bundle_to_ray_points(ray_bundle)
        # rays_points_world.shape = [minibatch x ... x 3]

        # For each 3D world coordinate, we obtain its harmonic embedding.
        embeds = self.harmonic_embedding(
            rays_points_world
        )
        # embeds.shape = [minibatch x ... x self.n_harmonic_functions*6]

        # self.mlp maps each harmonic embedding to a latent feature space.
        features = self.mlp(embeds)
        # features.shape = [minibatch x ... x n_hidden_neurons]

        # Finally, given the per-point features,
        # execute the density and color branches.

        rays_densities = self._get_densities(features)
        # rays_densities.shape = [minibatch x ... x 1]

        rays_colors = self._get_colors(features, ray_bundle.directions)
        # rays_colors.shape = [minibatch x ... x 3]

        return rays_densities, rays_colors

    def batched_forward(
        self,
        ray_bundle: RayBundle,
        n_batches: int = 16,
        **kwargs,
    ):
        """
        This function is used to allow for memory efficient processing
        of input rays. The input rays are first split to `n_batches`
        chunks and passed through the `self.forward` function one at a time
        in a for loop. Combined with disabling PyTorch gradient caching
        (`torch.no_grad()`), this allows for rendering large batches
        of rays that do not all fit into GPU memory in a single forward pass.
        In our case, batched_forward is used to export a fully-sized render
        of the radiance field for visualization purposes.

        Args:
            ray_bundle: A RayBundle object containing the following variables:
                origins: A tensor of shape `(minibatch, ..., 3)` denoting the
                    origins of the sampling rays in world coords.
                directions: A tensor of shape `(minibatch, ..., 3)`
                    containing the direction vectors of sampling rays in world coords.
                lengths: A tensor of shape `(minibatch, ..., num_points_per_ray)`
                    containing the lengths at which the rays are sampled.
            n_batches: Specifies the number of batches the input rays are split into.
                The larger the number of batches, the smaller the memory footprint
                and the lower the processing speed.

        Returns:
            rays_densities: A tensor of shape `(minibatch, ..., num_points_per_ray, 1)`
                denoting the opacity of each ray point.
            rays_colors: A tensor of shape `(minibatch, ..., num_points_per_ray, 3)`
                denoting the color of each ray point.

        """

        # Parse out shapes needed for tensor reshaping in this function.
        n_pts_per_ray = ray_bundle.lengths.shape[-1]
        spatial_size = [*ray_bundle.origins.shape[:-1], n_pts_per_ray]

        # Split the rays to `n_batches` batches.
        tot_samples = ray_bundle.origins.shape[:-1].numel()
        batches = torch.chunk(torch.arange(tot_samples), n_batches)

        # For each batch, execute the standard forward pass.
        batch_outputs = [
            self.forward(
                RayBundle(
                    origins=ray_bundle.origins.view(-1, 3)[batch_idx],
                    directions=ray_bundle.directions.view(-1, 3)[batch_idx],
                    lengths=ray_bundle.lengths.view(-1, n_pts_per_ray)[batch_idx],
                    xys=None,
                )
            ) for batch_idx in batches
        ]

        # Concatenate the per-batch rays_densities and rays_colors
        # and reshape according to the sizes of the inputs.
        rays_densities, rays_colors = [
            torch.cat(
                [batch_output[output_i] for batch_output in batch_outputs], dim=0
            ).view(*spatial_size, -1) for output_i in (0, 1)
        ]
        return rays_densities, rays_colors

4. 辅助函数

在此部分中，我们定义了用于神经辐射场优化的辅助函数。

def huber(x, y, scaling=0.1):
    """
    A helper function for evaluating the smooth L1 (huber) loss
    between the rendered silhouettes and colors.
    """
    diff_sq = (x - y) ** 2
    loss = ((1 + diff_sq / (scaling**2)).clamp(1e-4).sqrt() - 1) * float(scaling)
    return loss

def sample_images_at_mc_locs(target_images, sampled_rays_xy):
    """
    Given a set of Monte Carlo pixel locations `sampled_rays_xy`,
    this method samples the tensor `target_images` at the
    respective 2D locations.

    This function is used in order to extract the colors from
    ground truth images that correspond to the colors
    rendered using `MonteCarloRaysampler`.
    """
    ba = target_images.shape[0]
    dim = target_images.shape[-1]
    spatial_size = sampled_rays_xy.shape[1:-1]
    # In order to sample target_images, we utilize
    # the grid_sample function which implements a
    # bilinear image sampler.
    # Note that we have to invert the sign of the
    # sampled ray positions to convert the NDC xy locations
    # of the MonteCarloRaysampler to the coordinate
    # convention of grid_sample.
    images_sampled = torch.nn.functional.grid_sample(
        target_images.permute(0, 3, 1, 2),
        -sampled_rays_xy.view(ba, -1, 1, 2),  # note the sign inversion
        align_corners=True
    )
    return images_sampled.permute(0, 2, 3, 1).view(
        ba, *spatial_size, dim
    )

def show_full_render(
    neural_radiance_field, camera,
    target_image, target_silhouette,
    loss_history_color, loss_history_sil,
):
    """
    This is a helper function for visualizing the
    intermediate results of the learning.

    Since the `NeuralRadianceField` suffers from
    a large memory footprint, which does not let us
    render the full image grid in a single forward pass,
    we utilize the `NeuralRadianceField.batched_forward`
    function in combination with disabling the gradient caching.
    This chunks the set of emitted rays to batches and
    evaluates the implicit function on one batch at a time
    to prevent GPU memory overflow.
    """

    # Prevent gradient caching.
    with torch.no_grad():
        # Render using the grid renderer and the
        # batched_forward function of neural_radiance_field.
        rendered_image_silhouette, _ = renderer_grid(
            cameras=camera,
            volumetric_function=neural_radiance_field.batched_forward
        )
        # Split the rendering result to a silhouette render
        # and the image render.
        rendered_image, rendered_silhouette = (
            rendered_image_silhouette[0].split([3, 1], dim=-1)
        )

    # Generate plots.

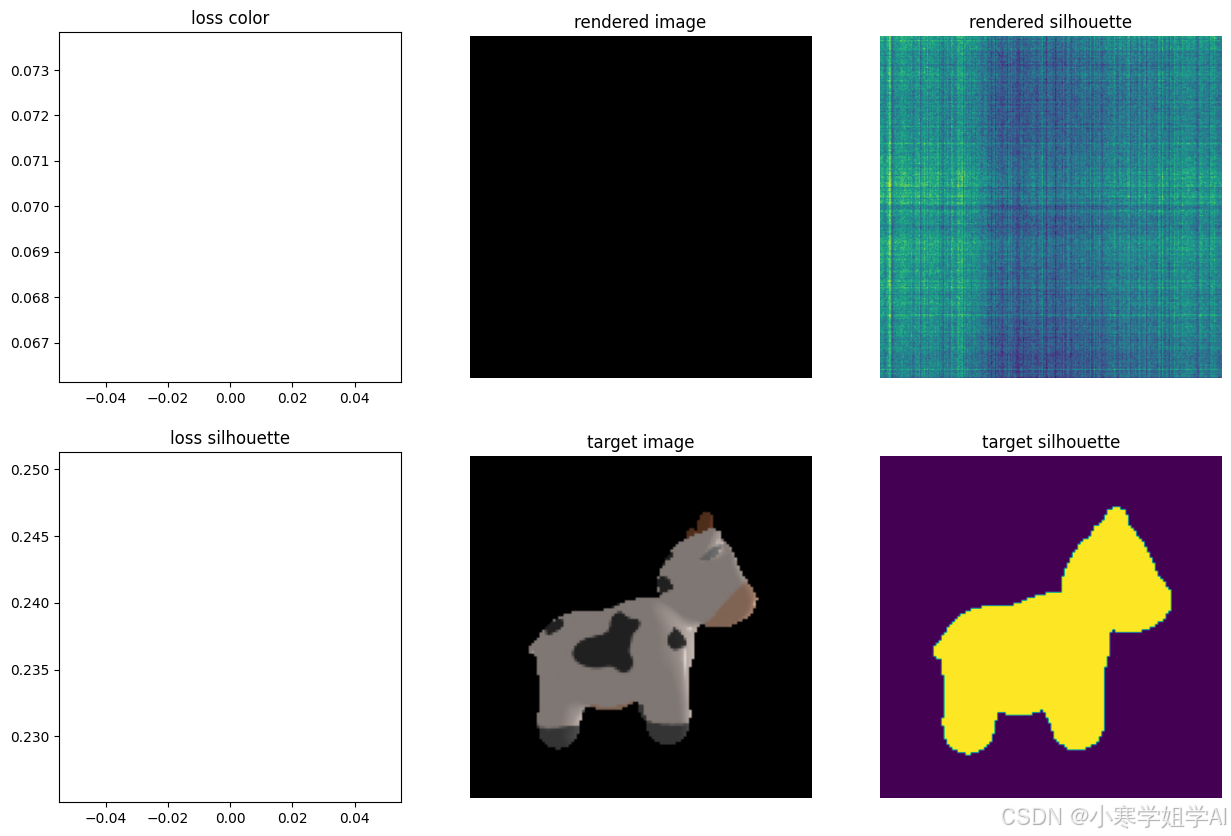

    fig, ax = plt.subplots(2, 3, figsize=(15, 10))
    ax = ax.ravel()
    clamp_and_detach = lambda x: x.clamp(0.0, 1.0).cpu().detach().numpy()
    ax[0].plot(list(range(len(loss_history_color))), loss_history_color, linewidth=1)
    ax[1].imshow(clamp_and_detach(rendered_image))
    ax[2].imshow(clamp_and_detach(rendered_silhouette[..., 0]))
    ax[3].plot(list(range(len(loss_history_sil))), loss_history_sil, linewidth=1)
    ax[4].imshow(clamp_and_detach(target_image))
    ax[5].imshow(clamp_and_detach(target_silhouette))
    for ax_, title_ in zip(
        ax,
        (
            "loss color", "rendered image", "rendered silhouette",
            "loss silhouette", "target image",  "target silhouette",
        )
    ):
        if not title_.startswith('loss'):
            ax_.grid("off")
            ax_.axis("off")
        ax_.set_title(title_)
    fig.canvas.draw(); fig.show()
    display.clear_output(wait=True)
    display.display(fig)
    return fig

5. 拟合辐射场

在这里，我们使用可微分渲染来进行辐射场的拟合。

为了拟合辐射场，我们从 target_cameras 的视点渲染它，并将结果与观察到的 target_images 和 target_silhouettes 进行比较。

比较通过评估相应的 target_images / rendered_images 和 target_silhouettes / rendered_silhouettes 对之间的平均 Huber（smooth-l1）误差来完成。

由于我们使用了 MonteCarloRaysampler ，训练渲染器 renderer_mc 的输出是从图像平面随机采样的像素颜色，而不是形成有效图像的像素网格。因此，为了将渲染的颜色与真实值进行比较，我们利用随机的 MonteCarlo 像素位置在渲染位置对应的 xy 位置处对真实图像/轮廓 target_silhouettes / rendered_silhouettes 进行采样。这是通过辅助函数 sample_images_at_mc_locs 完成的，该函数在前一个单元格中有所描述。

# First move all relevant variables to the correct device.
renderer_grid = renderer_grid.to(device)
renderer_mc = renderer_mc.to(device)
target_cameras = target_cameras.to(device)
target_images = target_images.to(device)
target_silhouettes = target_silhouettes.to(device)

# Set the seed for reproducibility
torch.manual_seed(1)

# Instantiate the radiance field model.
neural_radiance_field = NeuralRadianceField().to(device)

# Instantiate the Adam optimizer. We set its master learning rate to 1e-3.
lr = 1e-3
optimizer = torch.optim.Adam(neural_radiance_field.parameters(), lr=lr)

# We sample 6 random cameras in a minibatch. Each camera
# emits raysampler_mc.n_pts_per_image rays.
batch_size = 6

# 3000 iterations take ~20 min on a Tesla M40 and lead to
# reasonably sharp results. However, for the best possible
# results, we recommend setting n_iter=20000.
n_iter = 3000

# Init the loss history buffers.
loss_history_color, loss_history_sil = [], []

# The main optimization loop.
for iteration in range(n_iter):
    # In case we reached the last 75% of iterations,
    # decrease the learning rate of the optimizer 10-fold.
    if iteration == round(n_iter * 0.75):
        print('Decreasing LR 10-fold ...')
        optimizer = torch.optim.Adam(
            neural_radiance_field.parameters(), lr=lr * 0.1
        )

    # Zero the optimizer gradient.
    optimizer.zero_grad()

    # Sample random batch indices.
    batch_idx = torch.randperm(len(target_cameras))[:batch_size]

    # Sample the minibatch of cameras.
    batch_cameras = FoVPerspectiveCameras(
        R = target_cameras.R[batch_idx],
        T = target_cameras.T[batch_idx],
        znear = target_cameras.znear[batch_idx],
        zfar = target_cameras.zfar[batch_idx],
        aspect_ratio = target_cameras.aspect_ratio[batch_idx],
        fov = target_cameras.fov[batch_idx],
        device = device,
    )

    # Evaluate the nerf model.
    rendered_images_silhouettes, sampled_rays = renderer_mc(
        cameras=batch_cameras,
        volumetric_function=neural_radiance_field
    )
    rendered_images, rendered_silhouettes = (
        rendered_images_silhouettes.split([3, 1], dim=-1)
    )

    # Compute the silhouette error as the mean huber
    # loss between the predicted masks and the
    # sampled target silhouettes.
    silhouettes_at_rays = sample_images_at_mc_locs(
        target_silhouettes[batch_idx, ..., None],
        sampled_rays.xys
    )
    sil_err = huber(
        rendered_silhouettes,
        silhouettes_at_rays,
    ).abs().mean()

    # Compute the color error as the mean huber
    # loss between the rendered colors and the
    # sampled target images.
    colors_at_rays = sample_images_at_mc_locs(
        target_images[batch_idx],
        sampled_rays.xys
    )
    color_err = huber(
        rendered_images,
        colors_at_rays,
    ).abs().mean()

    # The optimization loss is a simple
    # sum of the color and silhouette errors.
    loss = color_err + sil_err

    # Log the loss history.
    loss_history_color.append(float(color_err))
    loss_history_sil.append(float(sil_err))

    # Every 10 iterations, print the current values of the losses.
    if iteration % 10 == 0:
        print(
            f'Iteration {iteration:05d}:'
            + f' loss color = {float(color_err):1.2e}'
            + f' loss silhouette = {float(sil_err):1.2e}'
        )

    # Take the optimization step.
    loss.backward()
    optimizer.step()

    # Visualize the full renders every 100 iterations.
    if iteration % 100 == 0:
        show_idx = torch.randperm(len(target_cameras))[:1]
        show_full_render(
            neural_radiance_field,
            FoVPerspectiveCameras(
                R = target_cameras.R[show_idx],
                T = target_cameras.T[show_idx],
                znear = target_cameras.znear[show_idx],
                zfar = target_cameras.zfar[show_idx],
                aspect_ratio = target_cameras.aspect_ratio[show_idx],
                fov = target_cameras.fov[show_idx],
                device = device,
            ),
            target_images[show_idx][0],
            target_silhouettes[show_idx][0],
            loss_history_color,
            loss_history_sil,
        )

6. 可视化优化后的神经辐射场

最后，我们通过从围绕体积 y 轴旋转的多个视点进行渲染来可视化神经辐射场。

def generate_rotating_nerf(neural_radiance_field, n_frames = 50):
    logRs = torch.zeros(n_frames, 3, device=device)
    logRs[:, 1] = torch.linspace(-3.14, 3.14, n_frames, device=device)
    Rs = so3_exp_map(logRs)
    Ts = torch.zeros(n_frames, 3, device=device)
    Ts[:, 2] = 2.7
    frames = []
    print('Rendering rotating NeRF ...')
    for R, T in zip(tqdm(Rs), Ts):
        camera = FoVPerspectiveCameras(
            R=R[None],
            T=T[None],
            znear=target_cameras.znear[0],
            zfar=target_cameras.zfar[0],
            aspect_ratio=target_cameras.aspect_ratio[0],
            fov=target_cameras.fov[0],
            device=device,
        )
        # Note that we again render with `NDCMultinomialRaysampler`
        # and the batched_forward function of neural_radiance_field.
        frames.append(
            renderer_grid(
                cameras=camera,
                volumetric_function=neural_radiance_field.batched_forward,
            )[0][..., :3]
        )
    return torch.cat(frames)

with torch.no_grad():
    rotating_nerf_frames = generate_rotating_nerf(neural_radiance_field, n_frames=3*5)

image_grid(rotating_nerf_frames.clamp(0., 1.).cpu().numpy(), rows=3, cols=5, rgb=True, fill=True)
plt.show()
